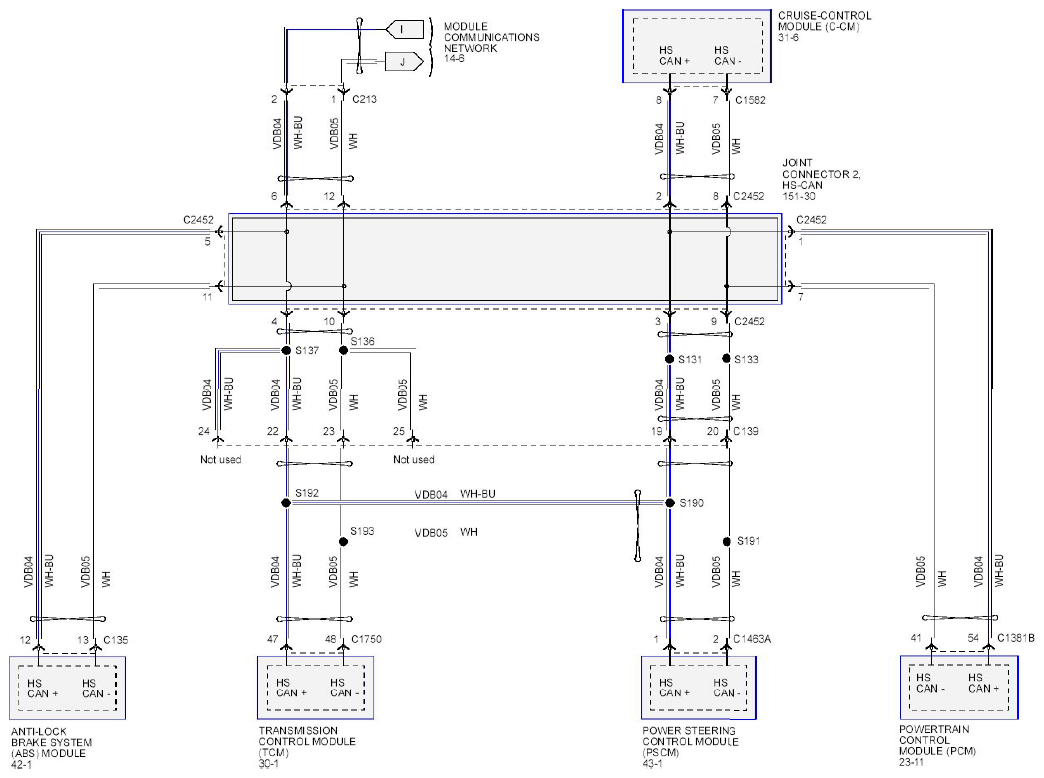

Fig 1: Module Communication Network - Wiring Diagram (2.0L GTDI)

G08748350

Courtesy of FORD MOTOR CO.
