Memory Seats

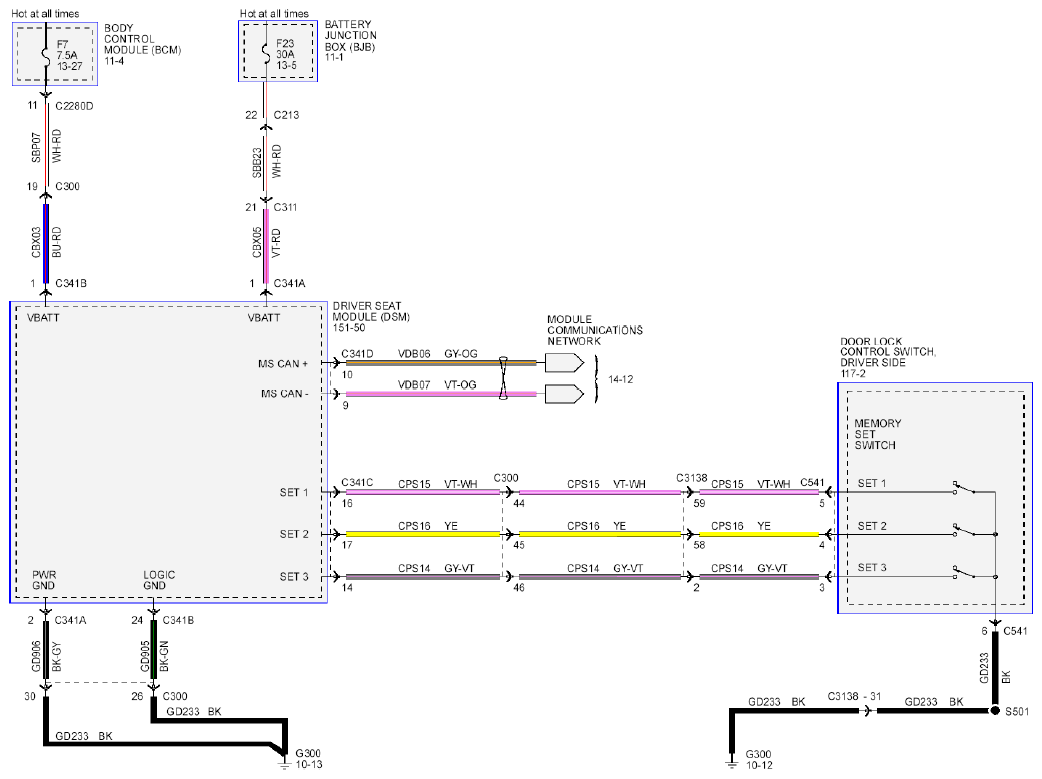

Fig 1: Memory Seats - Wiring Diagram (1 Of 5)

G08748570

Courtesy of FORD MOTOR CO.

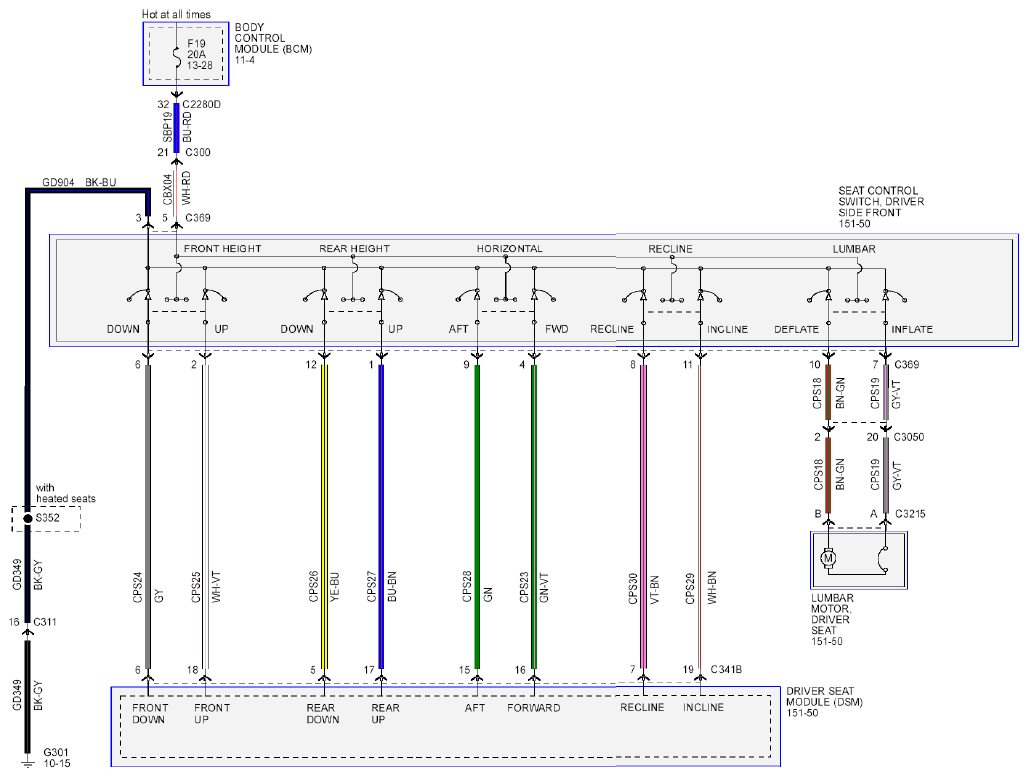

Fig 2: Memory Seats - Wiring Diagram (2 Of 5)

G08748571

Courtesy of FORD MOTOR CO.

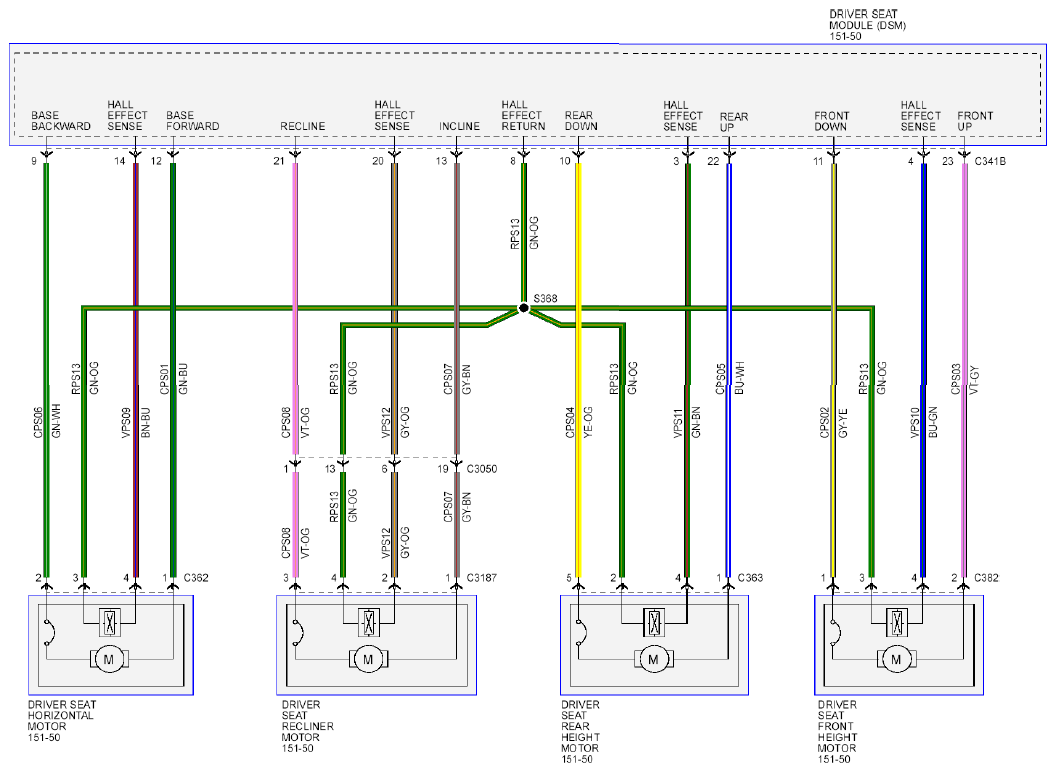

Fig 3: Memory Seats - Wiring Diagram (3 Of 5)

G08748572

Courtesy of FORD MOTOR CO.

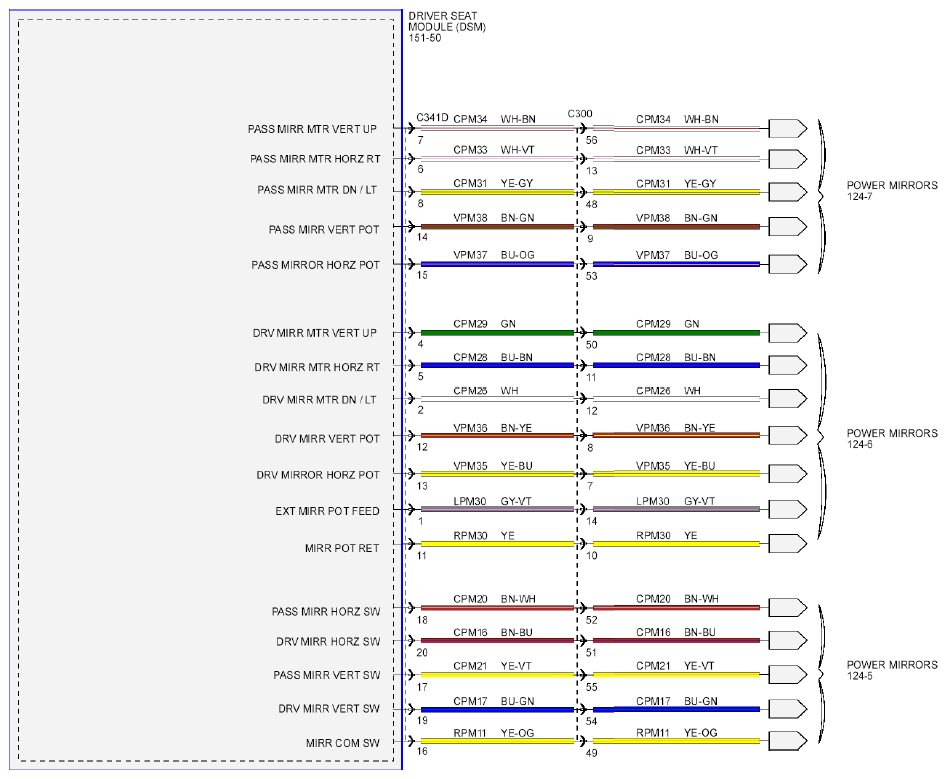

Fig 4: Memory Seats - Wiring Diagram (4 Of 5)

G08748573

Courtesy of FORD MOTOR CO.

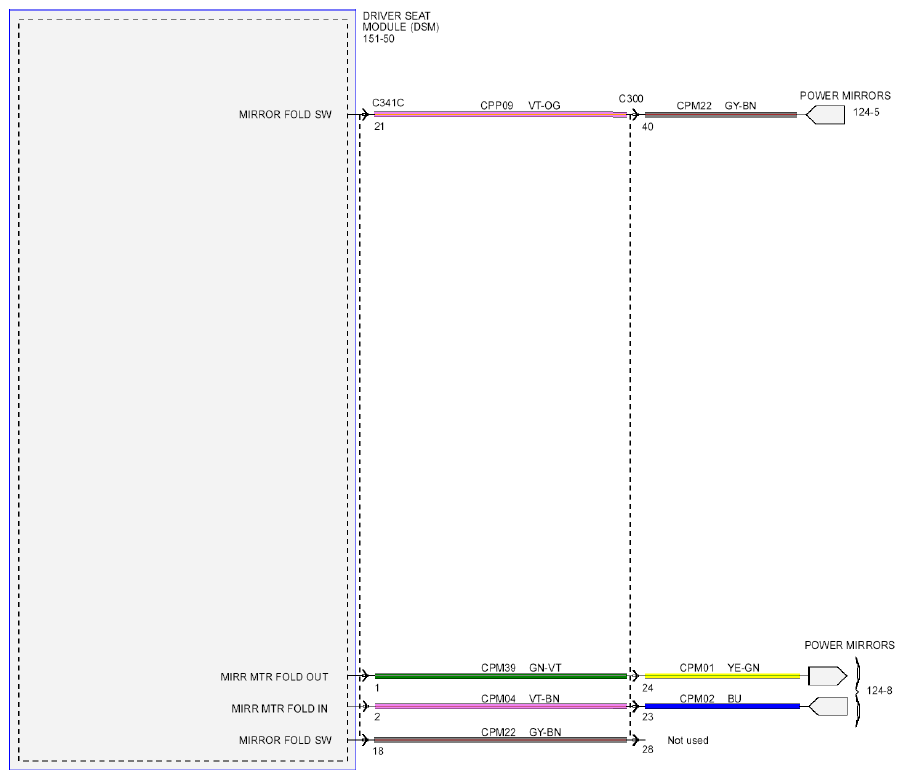

Fig 5: Memory Seats - Wiring Diagram (5 Of 5)

G08748574

Courtesy of FORD MOTOR CO.
