Manual Climate Control System
Manual Climate Control System

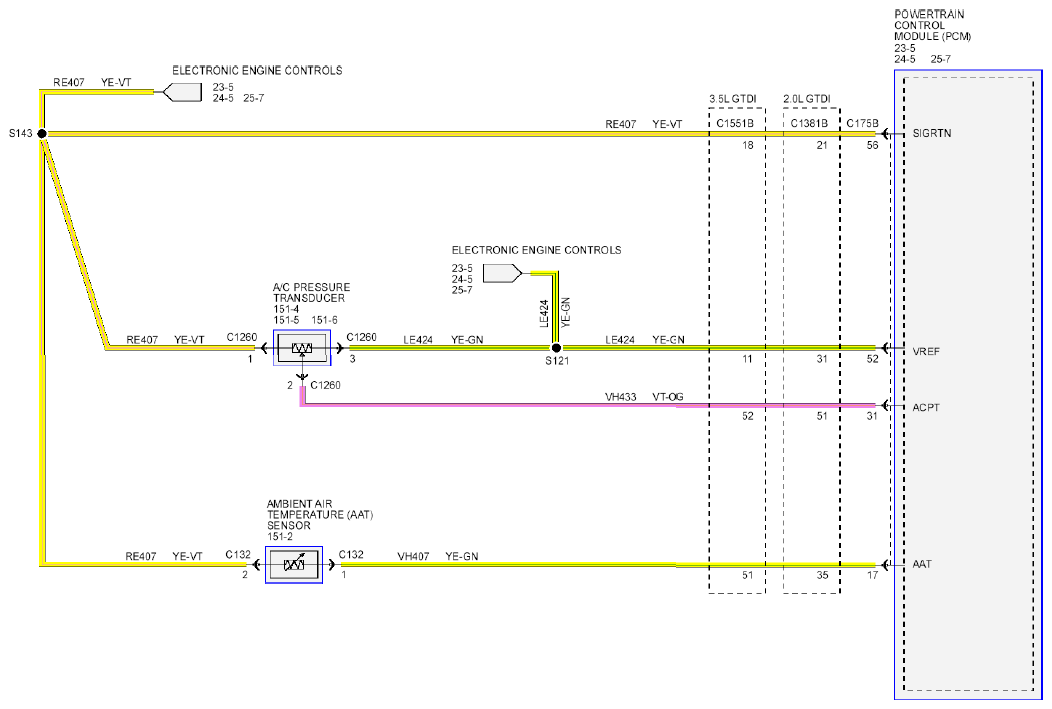

Fig 1: Manual Climate Control System - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

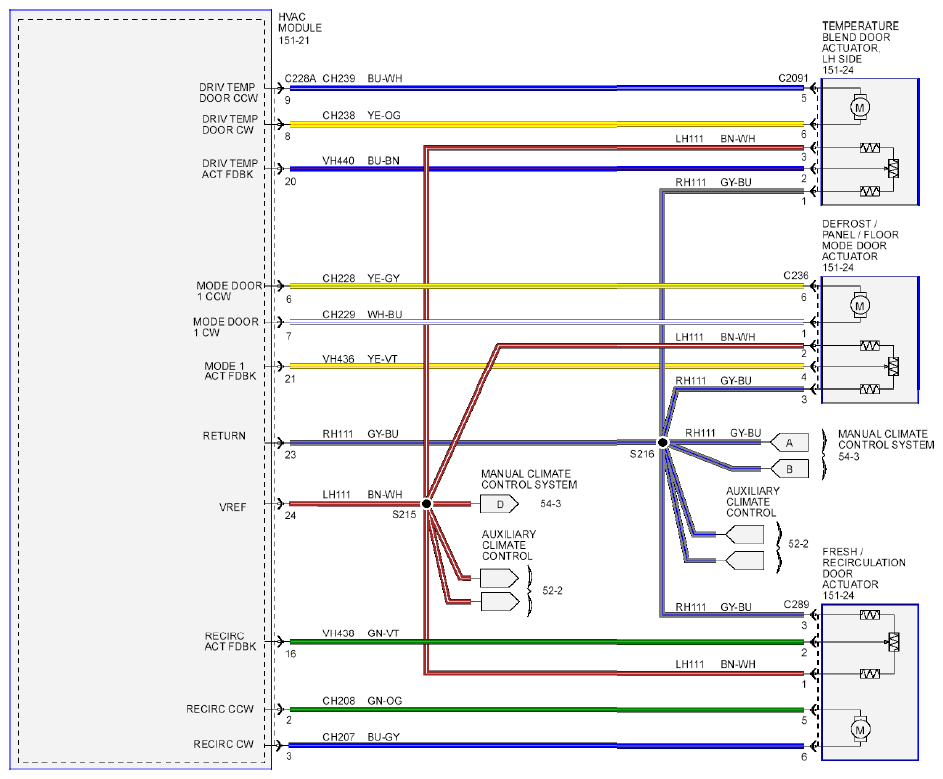

Fig 2: Manual Climate Control System - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

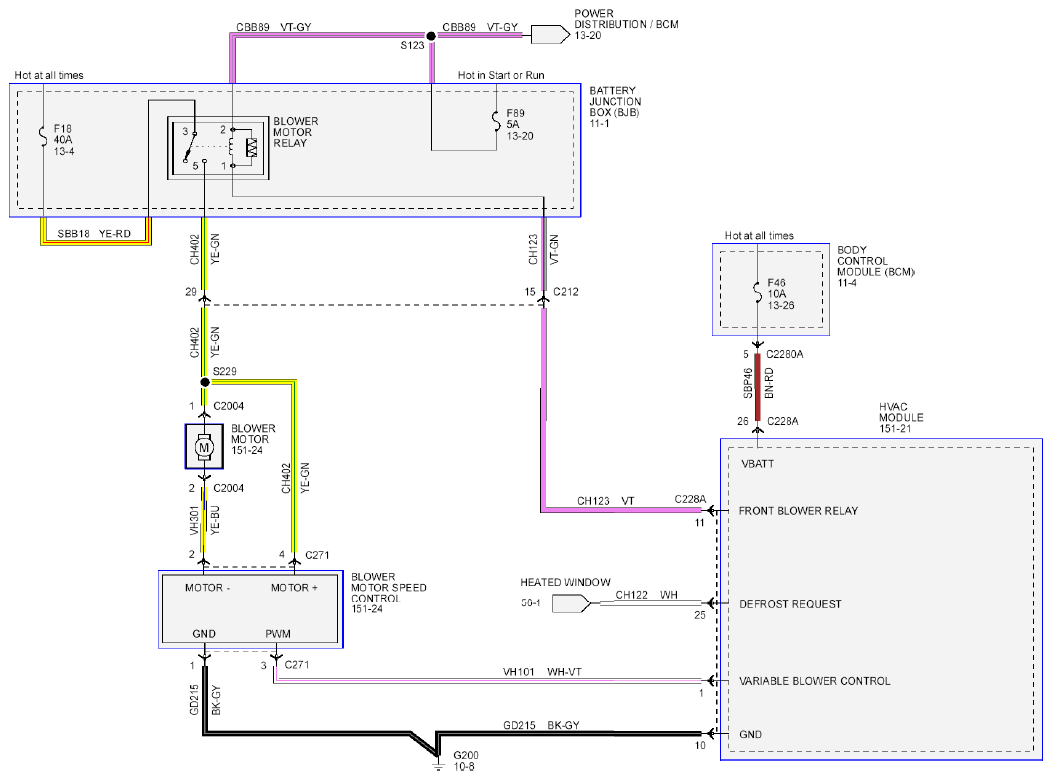

Fig 3: Manual Climate Control System - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

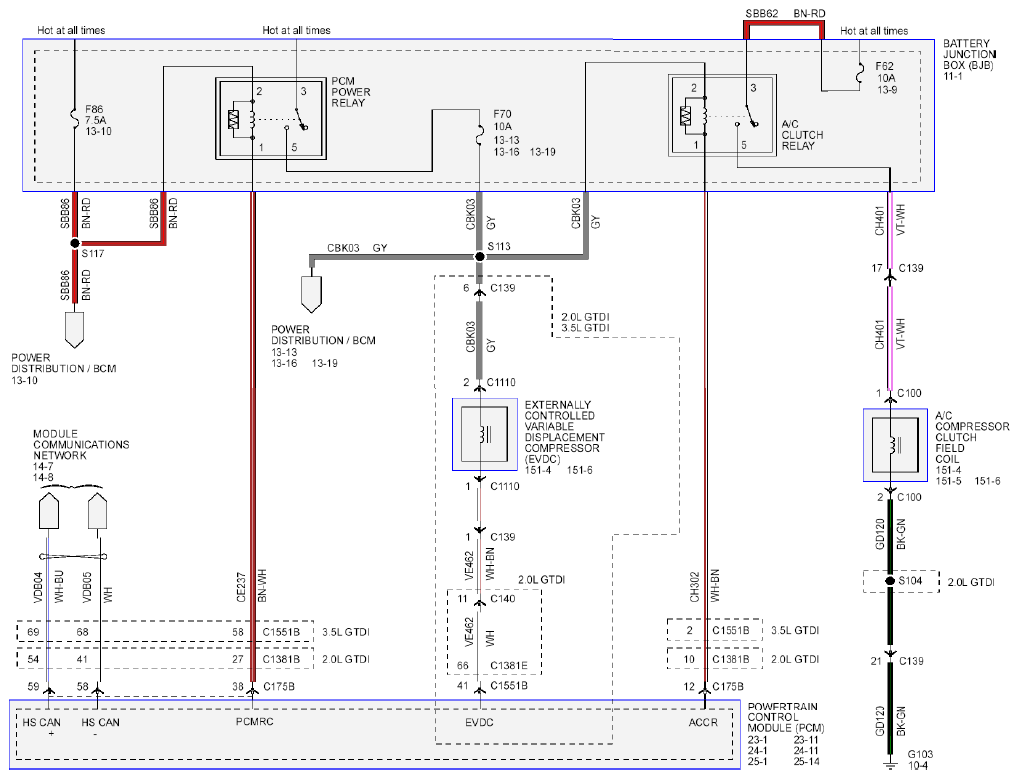

Fig 4: Manual Climate Control System - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

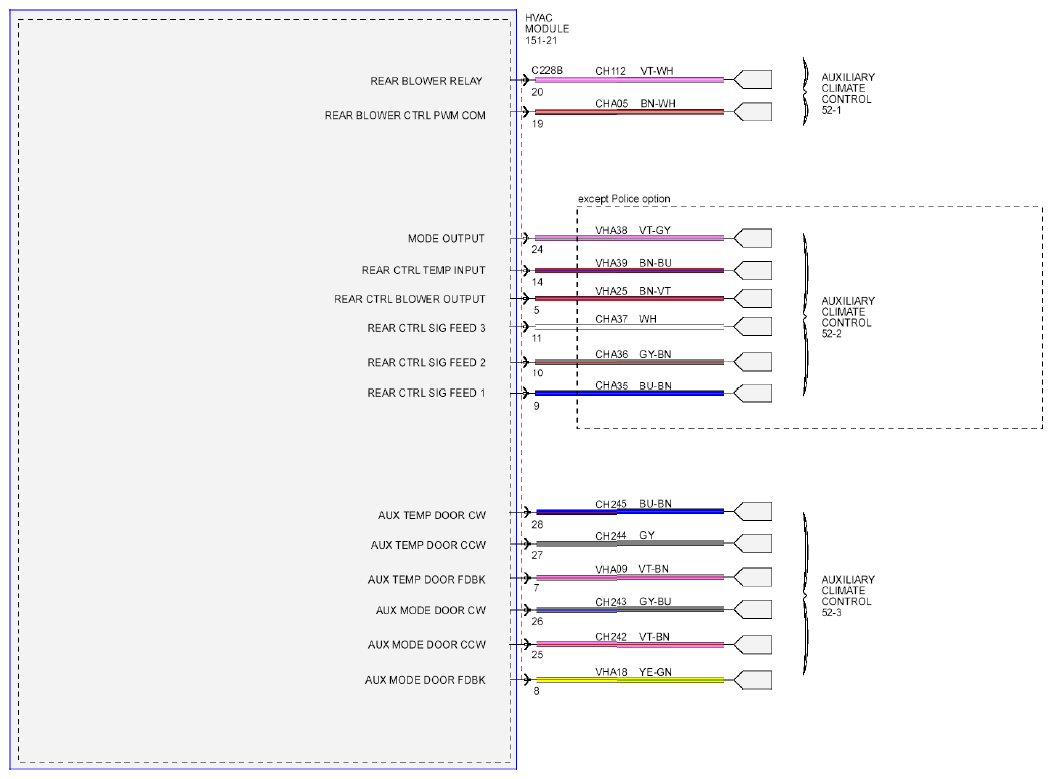

Fig 5: Manual Climate Control System - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

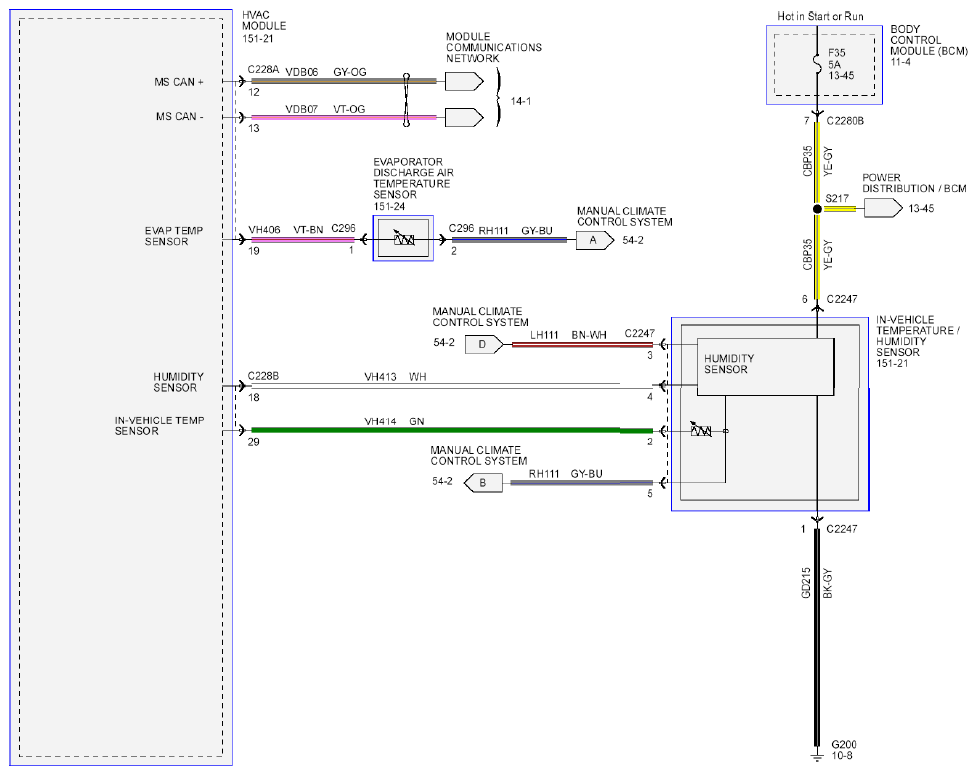

Fig 6: Manual Climate Control System - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
