OEM Wiring Diagrams: Headlamps/AUTOLAMPS: Notes

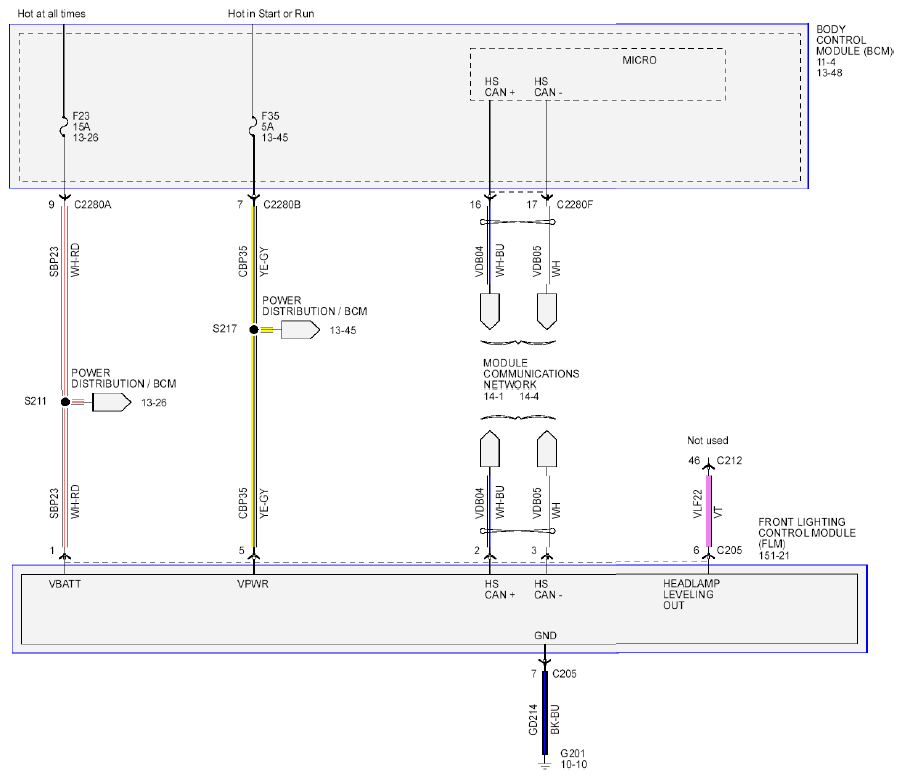

Fig 1: Headlamps/Autolamps - Wiring Diagram

G08748472

Courtesy of FORD MOTOR CO.
