Without Sync
Without Sync

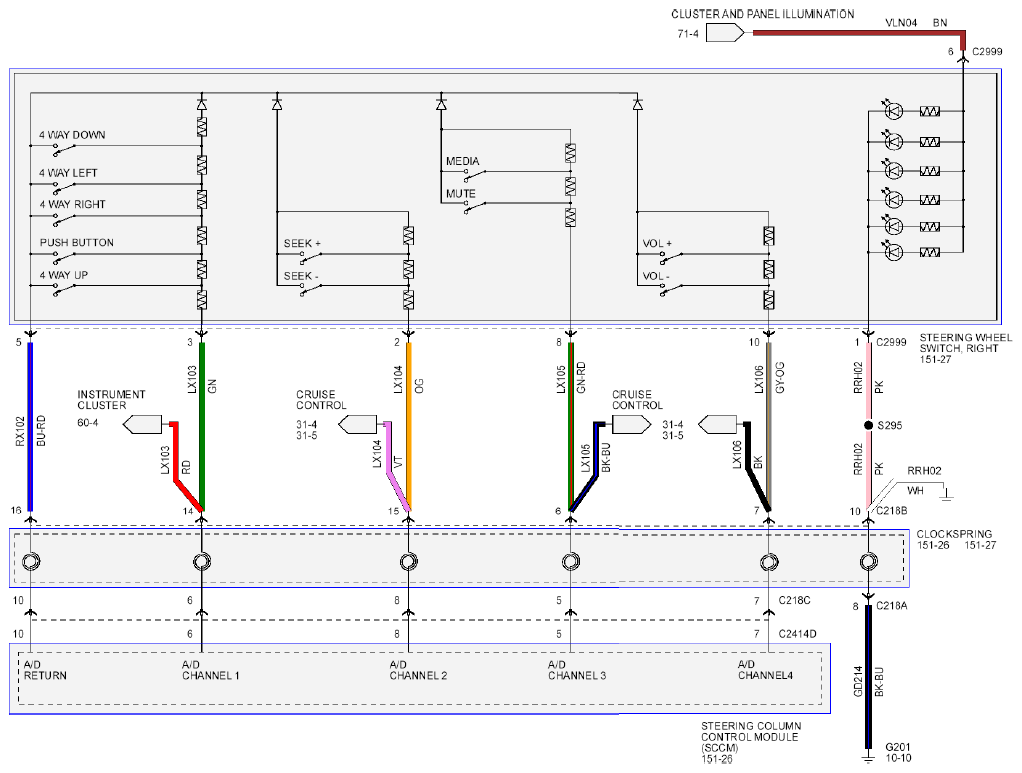

Fig 1: Audio System/Navigation - Wiring Diagram (Without Sync)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
