Explorer Police Interceptor, AWD
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Wiring Diagrams
>>
Audio System/Navigation
>>
Premium Plus Audio
Premium Plus Audio

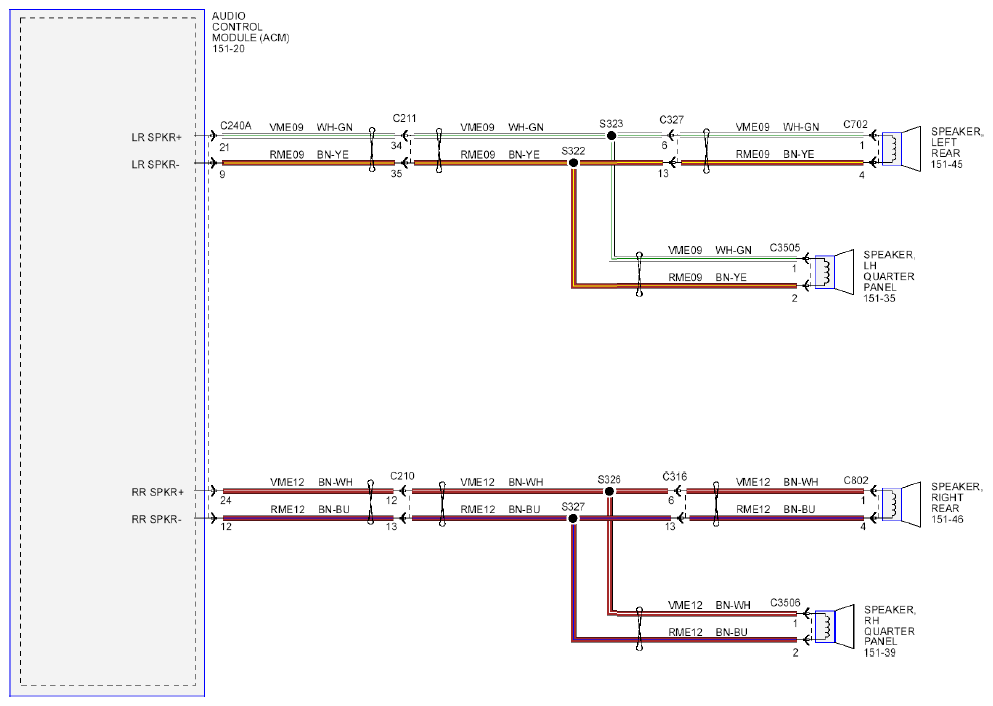

Fig 1: Audio System/Navigation (Premium Plus Audio) - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

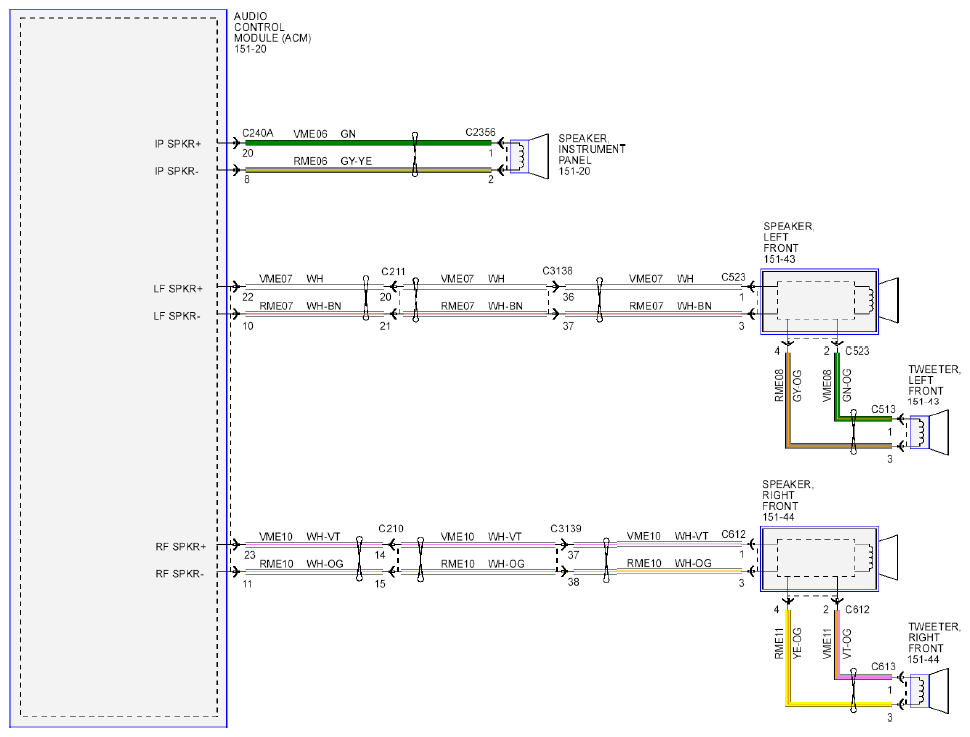

Fig 2: Audio System/Navigation (Premium Plus Audio) - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
