Audio System/Navigation
>>
Premium Audio
Premium Audio

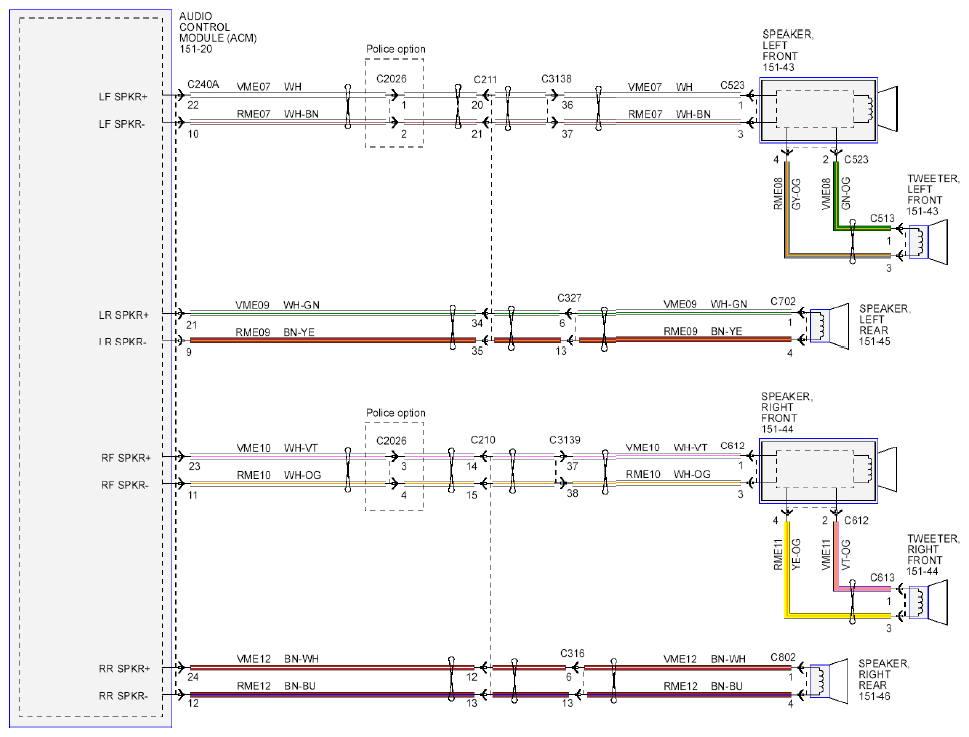

Fig 1: Audio System/Navigation - Wiring Diagram (Premium Audio)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
