Adjustable Pedal: Notes

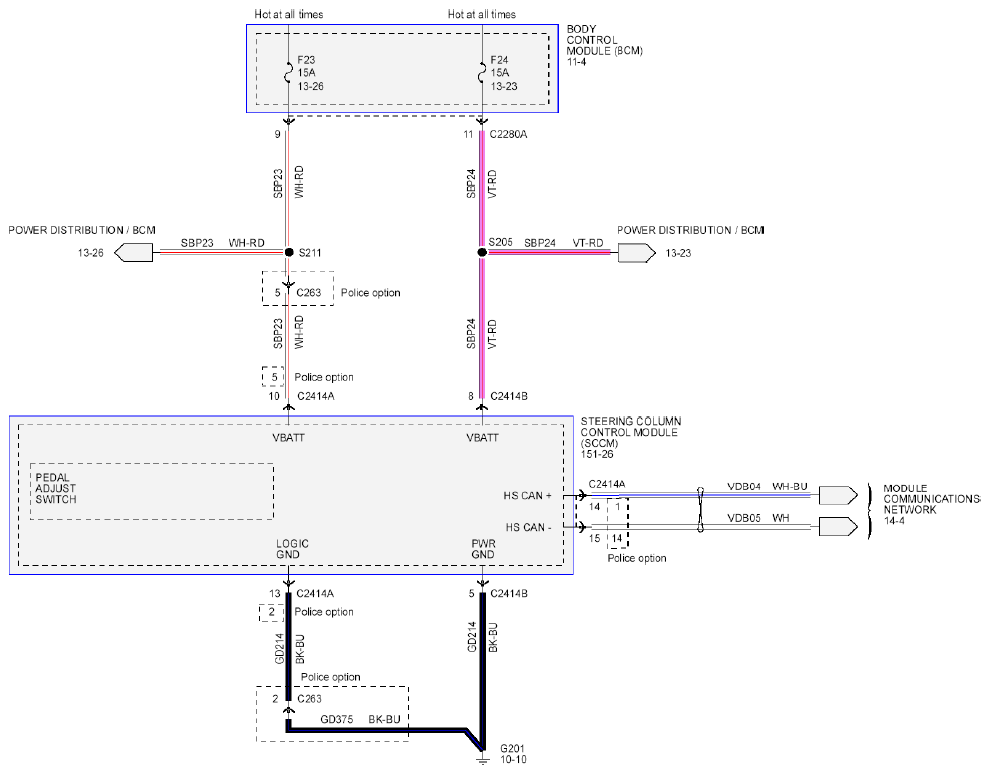

Fig 1: Adjustable Pedal - Wiring Diagram

G08748585

Courtesy of FORD MOTOR CO.
