Home >> Ford >> 2013 >> Explorer Police Interceptor, AWD >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Ground Distribution >> Grounds >> G400

OEM Ground Distribution: Grounds: G400

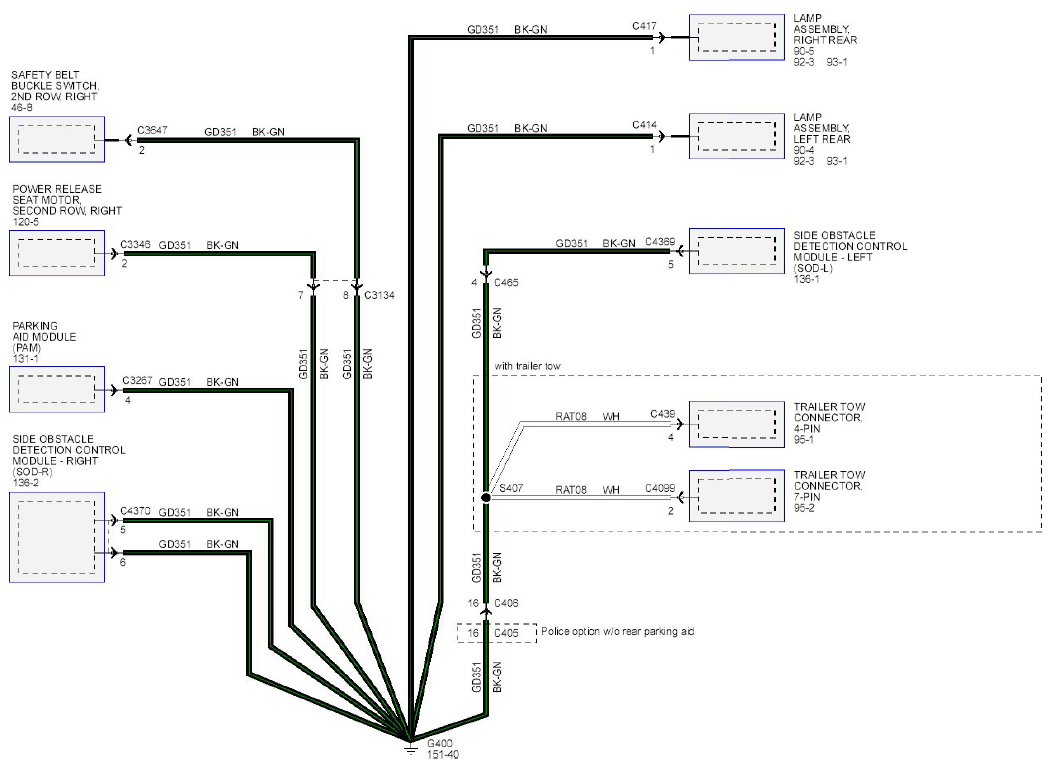

Fig 1: Grounds System (G400) Wiring Diagram

G08748291

Courtesy of FORD MOTOR CO.
