OEM Ground Distribution: Grounds: G302

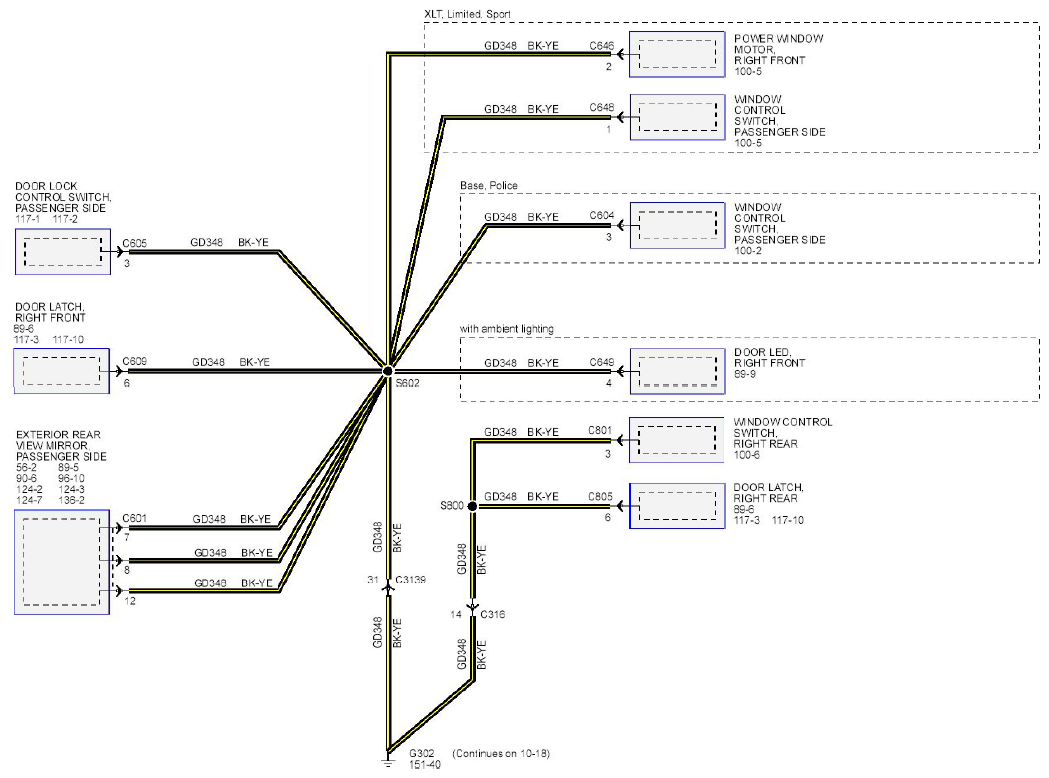

Fig 1: Grounds System (G302) Wiring Diagram (1 Of 2)

G08748289

Courtesy of FORD MOTOR CO.

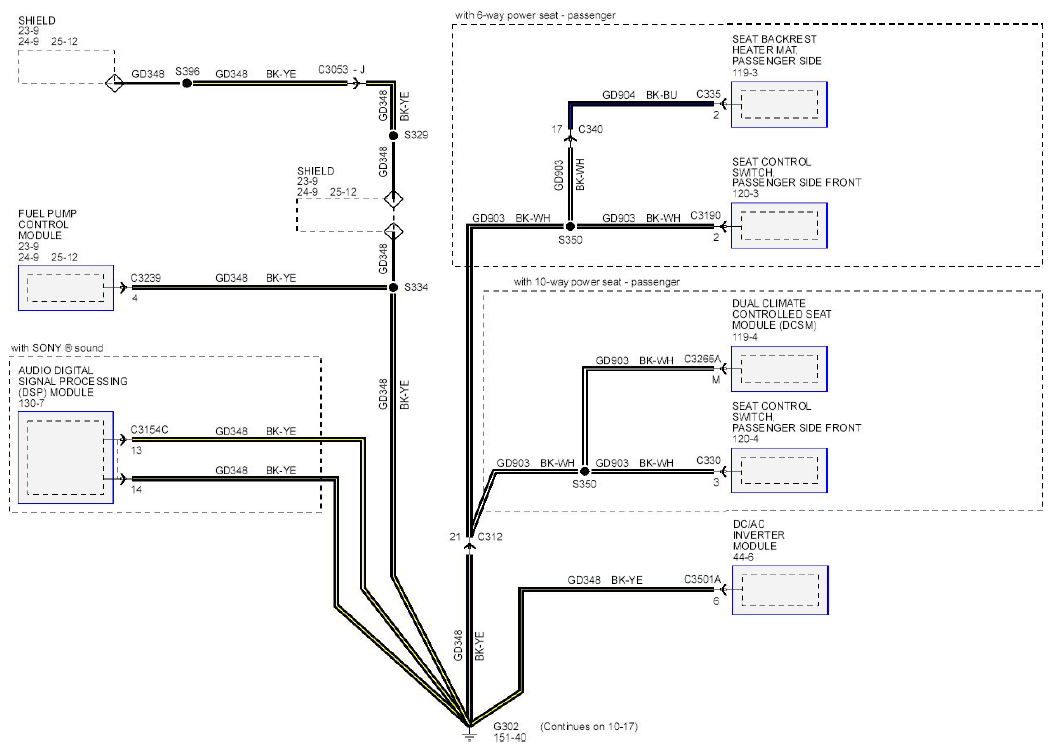

Fig 2: Grounds System (G302) Wiring Diagram (2 Of 2)

G08748290

Courtesy of FORD MOTOR CO.
