OEM Ground Distribution: Grounds: G301

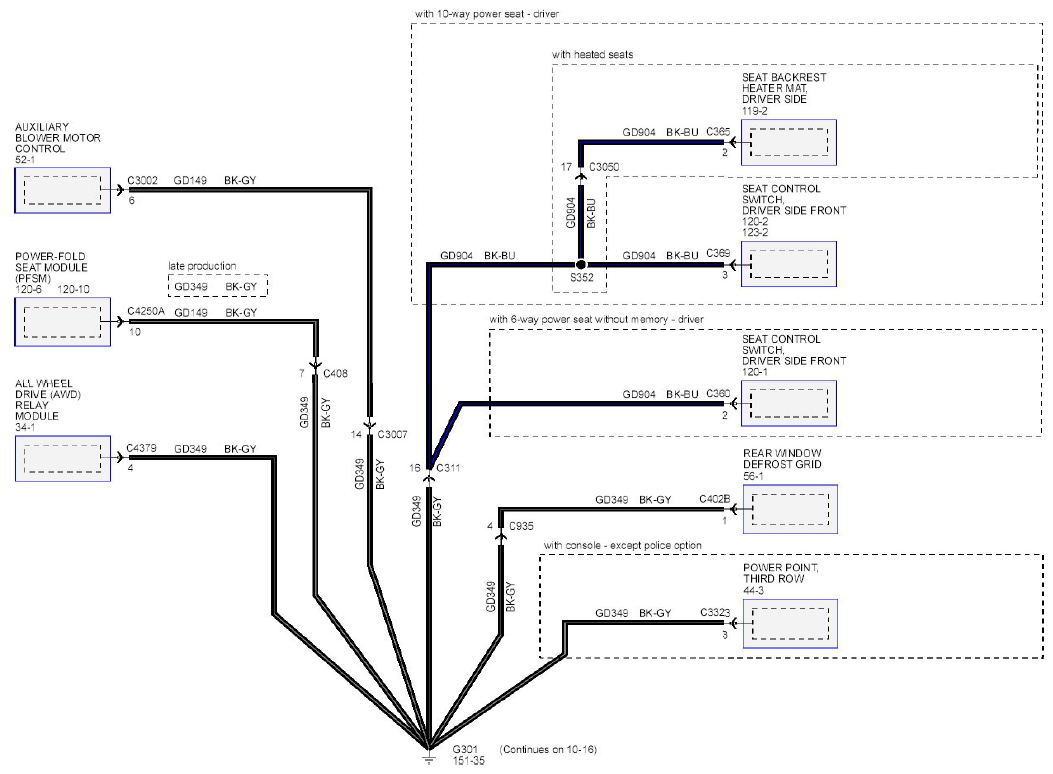

Fig 1: Grounds System (G301) Wiring Diagram (1 Of 2)

G08748287

Courtesy of FORD MOTOR CO.

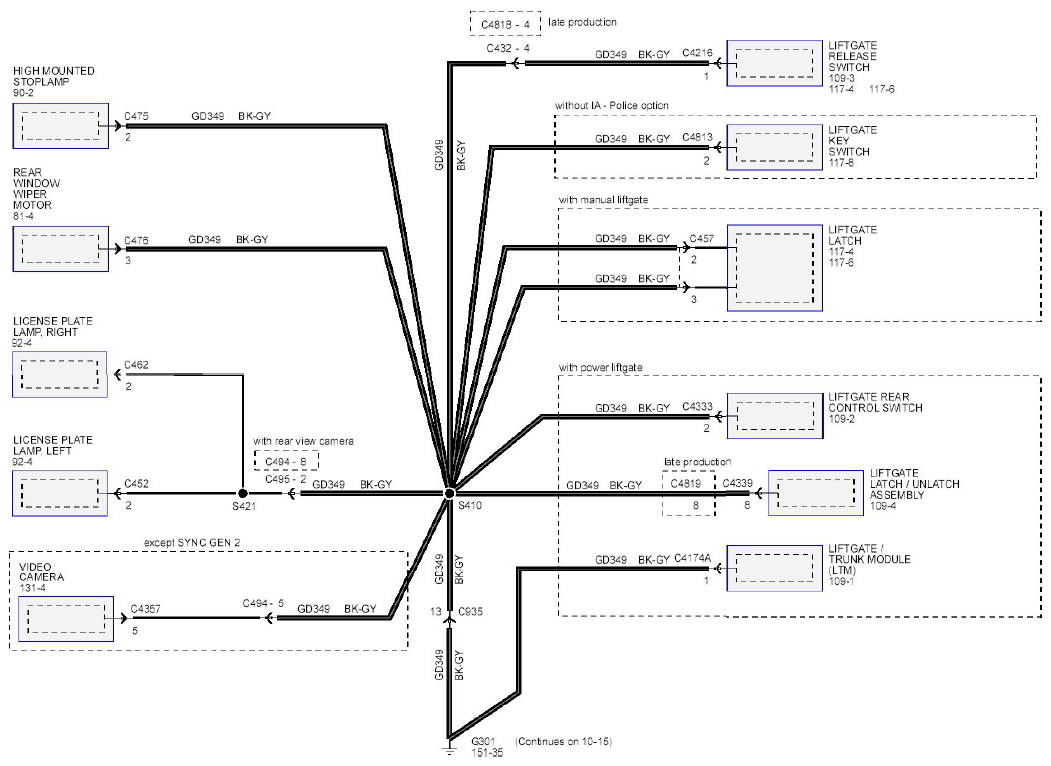

Fig 2: Grounds System (G301) Wiring Diagram (2 Of 2)

G08748288

Courtesy of FORD MOTOR CO.
