OEM Ground Distribution: Grounds: G200

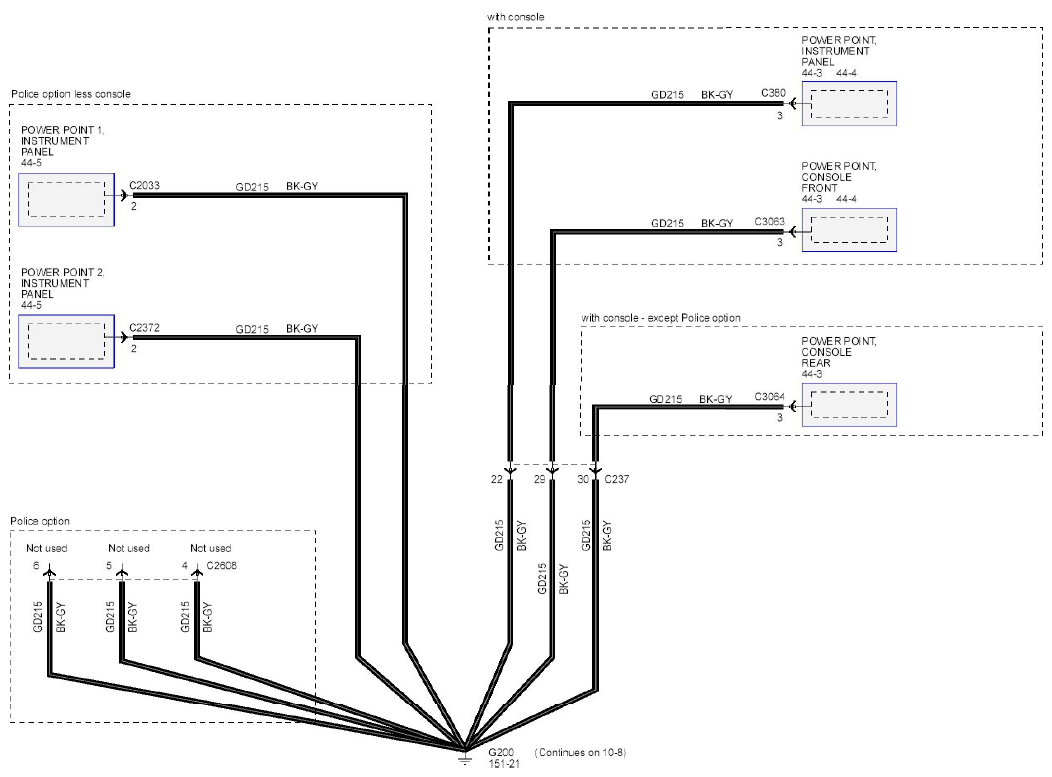

Fig 1: Grounds System (G200) Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

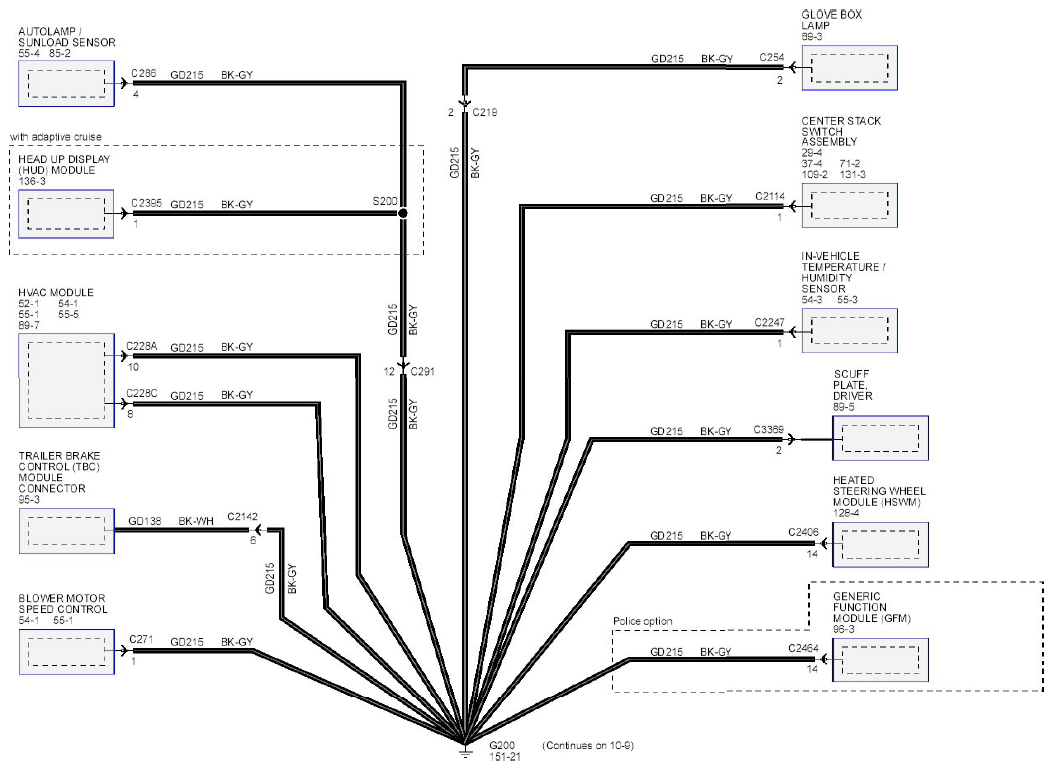

Fig 2: Grounds System (G200) Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
