OEM Ground Distribution: Grounds: G102

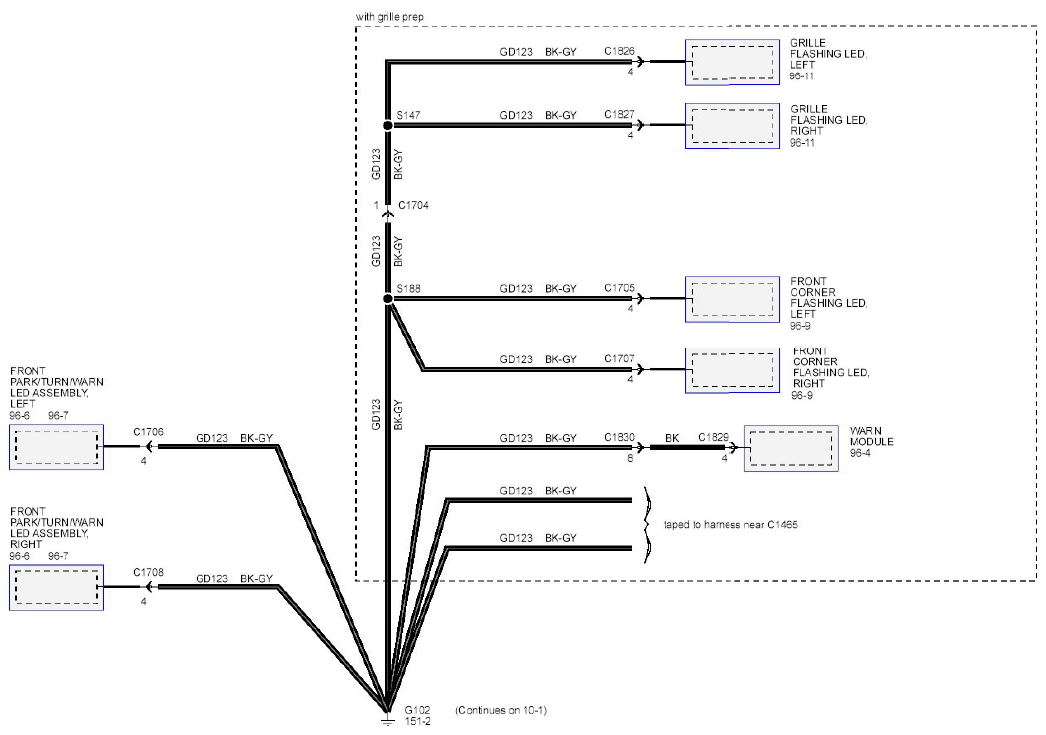

Fig 1: Grounds System Wiring Diagram (G102)

G08748274

Courtesy of FORD MOTOR CO.
