Exploded View

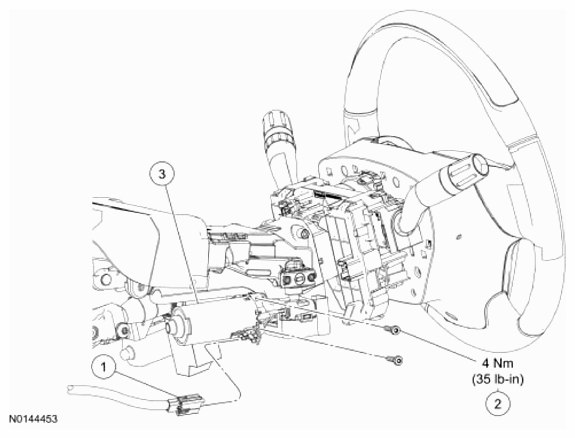

Fig 1: Exploded View Of Tilt/Telescopic Motors With Torque Specifications
G09084878Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Steering column tilt motor electrical connector (part of 14401)
2 W790120 Steering column tilt motor screws (2 required)
3 3D538 Steering column tilt motor
