Power Distribution/SJB: Notes

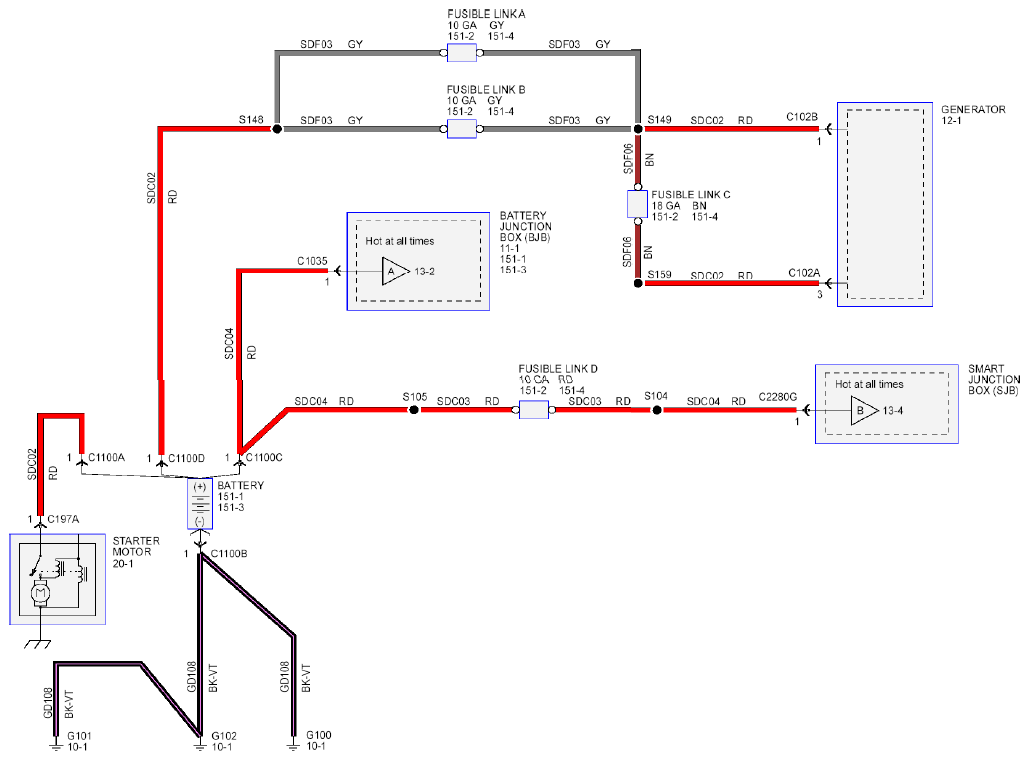

Fig 1: Power Distribution Wiring Diagram

G08734532

Courtesy of FORD MOTOR CO.
