Axle Assembly: Notes

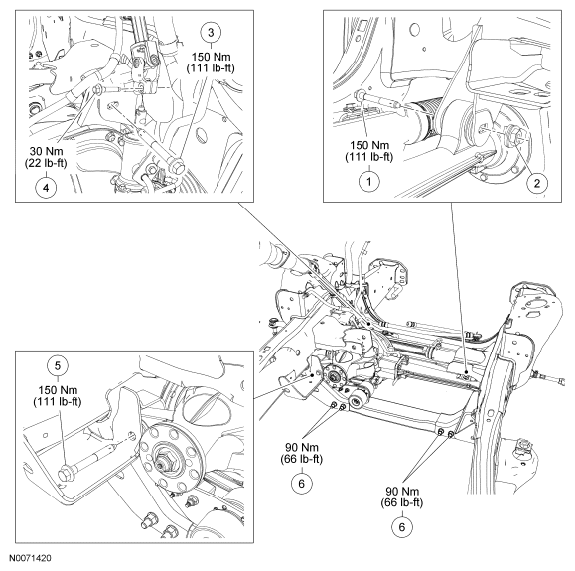

Fig 1: Axle Assembly Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W712724	Axle tube bushing bolt
2	W712723	Axle tube bushing flagnut
3	W712724	Rear axle housing bushing bolt
4	N808684	Steering column coupler bolt
5	W712743	Front axle housing bushing support bolt
6	636893	Crossmember nuts (4 required)
