Fuel Pump Driver Module (FPDM): Removal
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE:
LH
shown below, RH
similar.
Remove right rear door scuff plate trim panel.
-

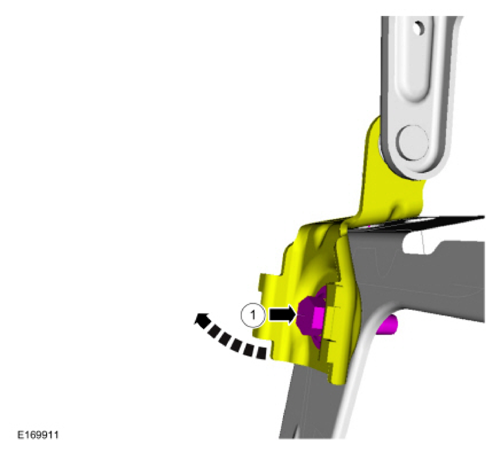

- Callout 1
- 1. Torque
: 30 lb.ft (40 Nm)
-
NOTE:

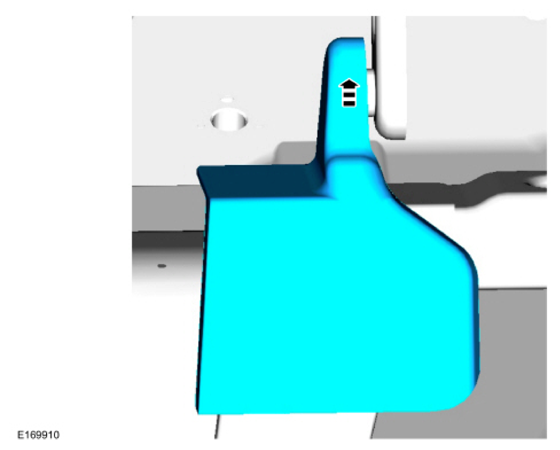

Position the carpet aside for access.

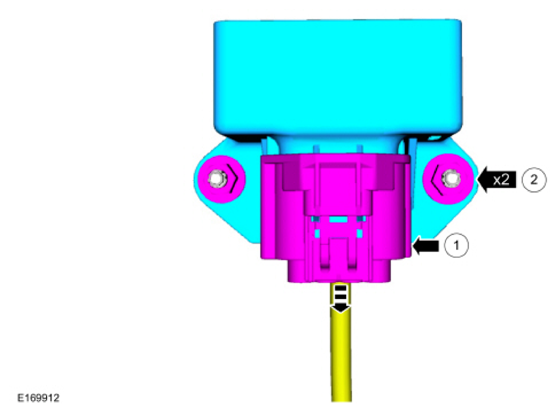

- 2. Torque
: 97 lb.in (11 Nm)
