Audio System/Navigation
>>
Notes
Audio System/Navigation: Notes

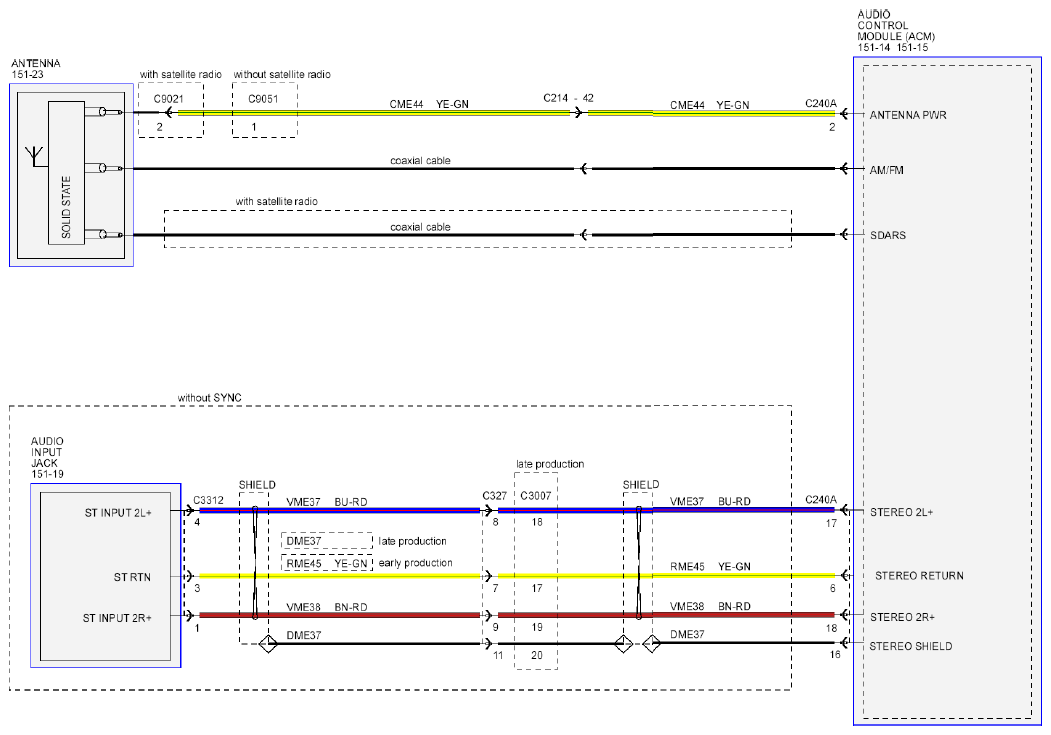

Fig 1: Audio System/Navigation Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

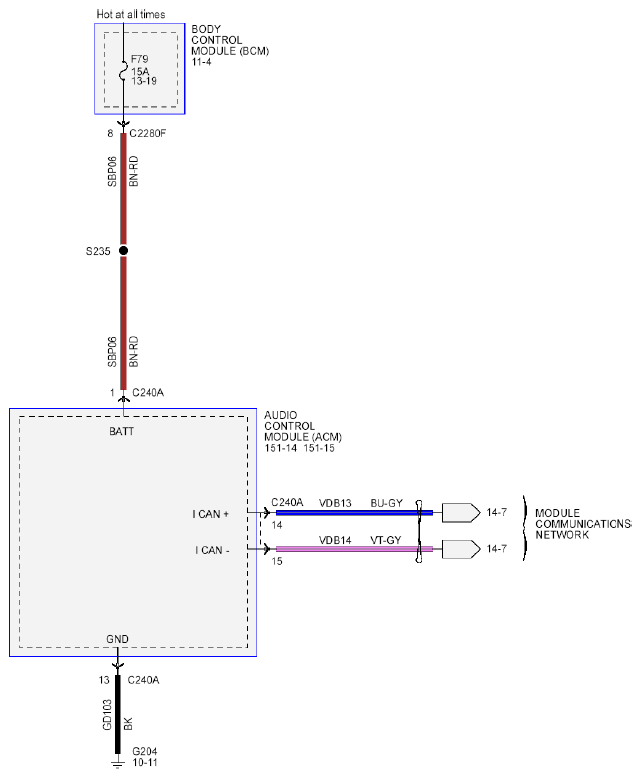

Fig 2: Audio System/Navigation Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

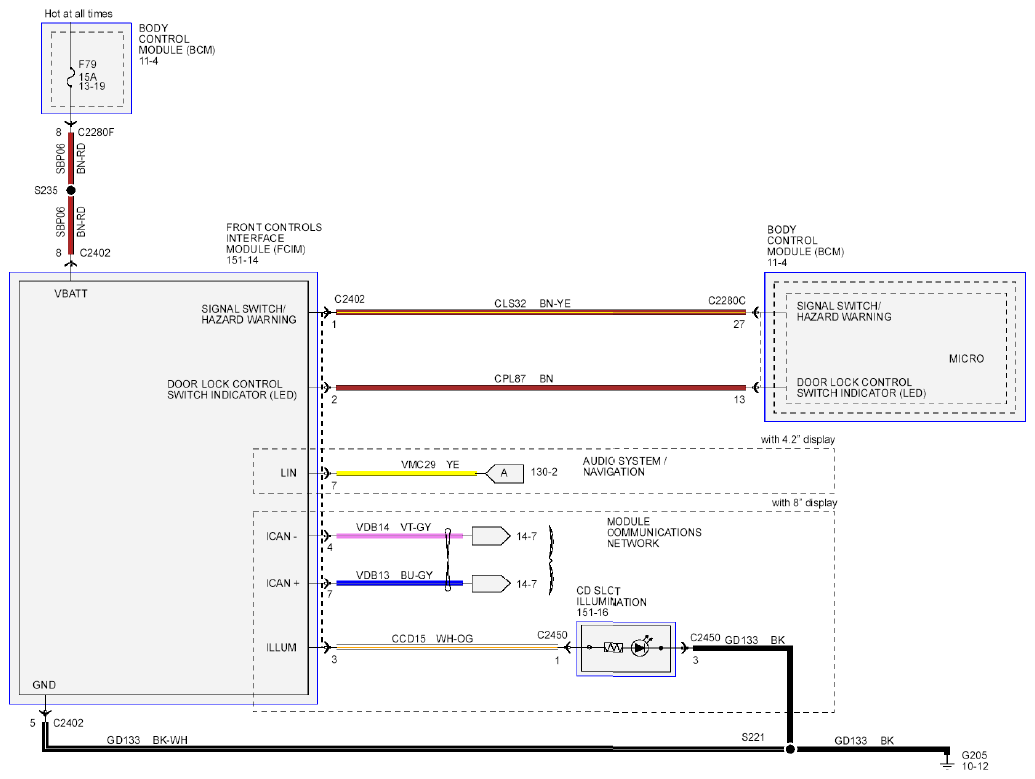

Fig 3: Audio System/Navigation Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

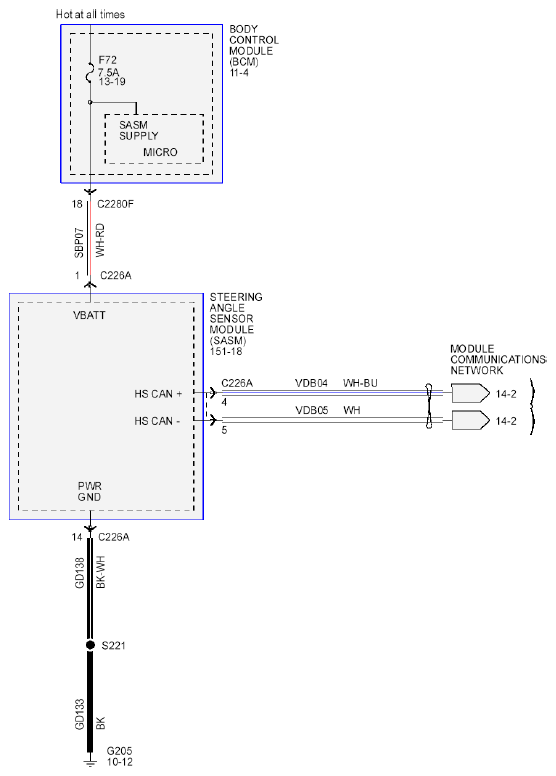

Fig 4: Audio System/Navigation Circuit Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
