Home >> Ford >> 2013 >> Escape Titanium, AWD >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Climate Control System (DATC) >> Description And Operation >> Climate Control System >> Component Location >> 2.0L GTDI

2.0L GTDI

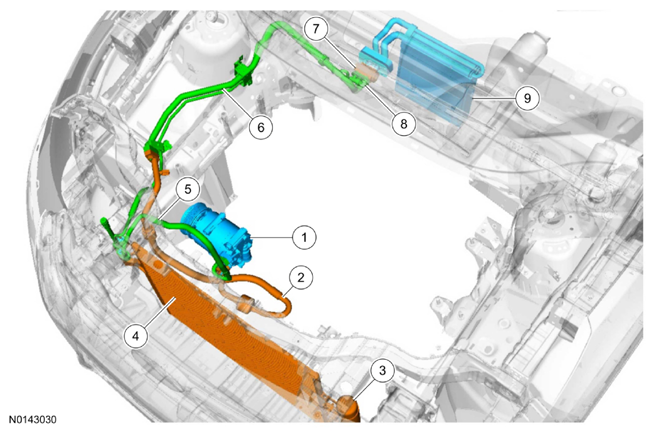

G08617280
Item Description
1 A/C compressor
2 Evaporator-to-compressor suction line
3 Receiver/drier
4 Condenser core
5 Compressor-to-condenser discharge line
6 TXV manifold and tube assembly
7 TXV
8 A/C pressure transducer
9 Evaporator core
