Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the liftgate trim panel. Refer to: Liftgate Trim Panel .

2.

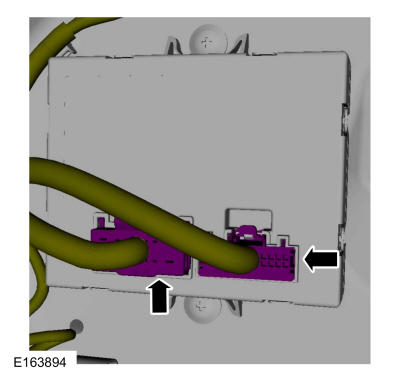

Disconnect the electrical connectors.

Courtesy of FORD MOTOR COMPANY

3.

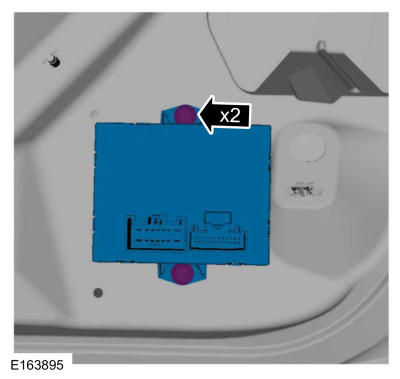

Remove the bolts and the RGTM.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
