Rear Door Alignment

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

Inspection

1.

Check rear door to body dimensions. Refer to: Body and Frame .

Adjustment

NOTE: LH shown, RH similar.

All alignments

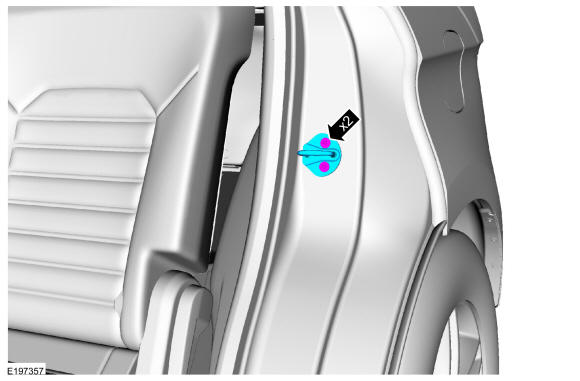

1.

Remove the bolts and the striker assembly.

GFD51067

Courtesy of FORD MOTOR COMPANY

Rear door in and out, up and down alignment

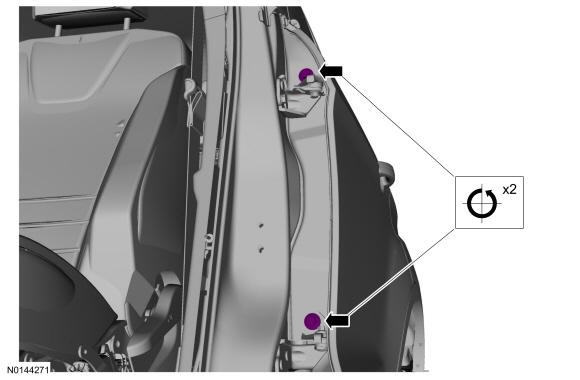

2.

Loosen the bolts to permit movement of the door.
Torque: 35 lb.ft (47 Nm)

GFD51068

Courtesy of FORD MOTOR COMPANY

3.

Adjust door to specification. Refer to: Body and Frame .

GFD51069

Courtesy of FORD MOTOR COMPANY

Rear door fore, aft and tilt alignment

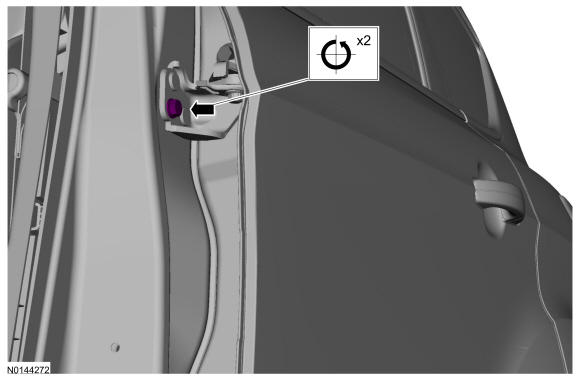

4.

Loosen the bolt to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD51070

Courtesy of FORD MOTOR COMPANY

5.

Refer to: Seatbelt Retractor and Pretensioner .

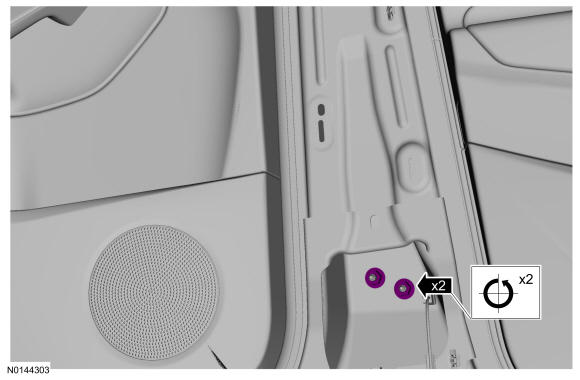

6.

Loosen the nuts to permit movement of the door.
Torque: 22 lb.ft (30 Nm)

GFD51071

Courtesy of FORD MOTOR COMPANY

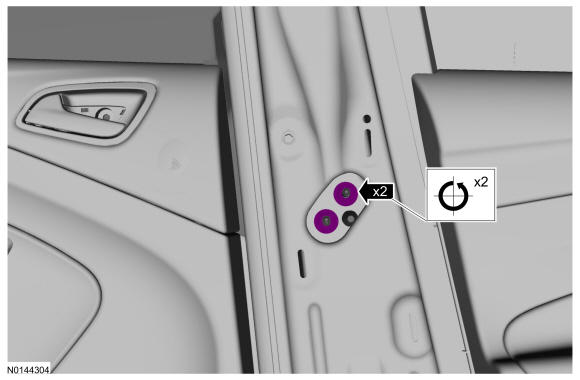

7.

Loosen the nuts to permit movement of the door.

GFD51072

Courtesy of FORD MOTOR COMPANY

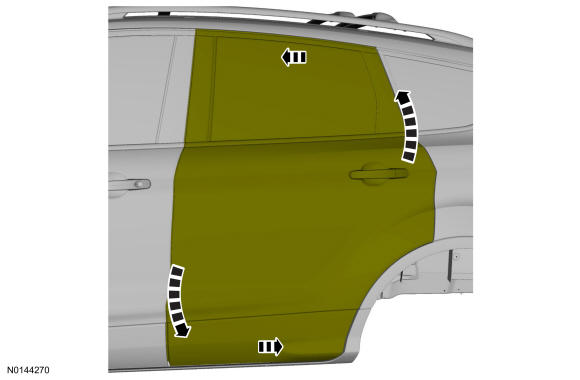

8.

Adjust door to specification. Refer to: Body and Frame .

GFD51073

Courtesy of FORD MOTOR COMPANY

All alignments

9.

Install the striker assembly.
Torque: 177 lb.in (20 Nm)

GFD51067

Courtesy of FORD MOTOR COMPANY

10.

Check body to rear door dimensions. Refer to: Body and Frame .

11.

Install the removed components.
