Ignition Switch

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

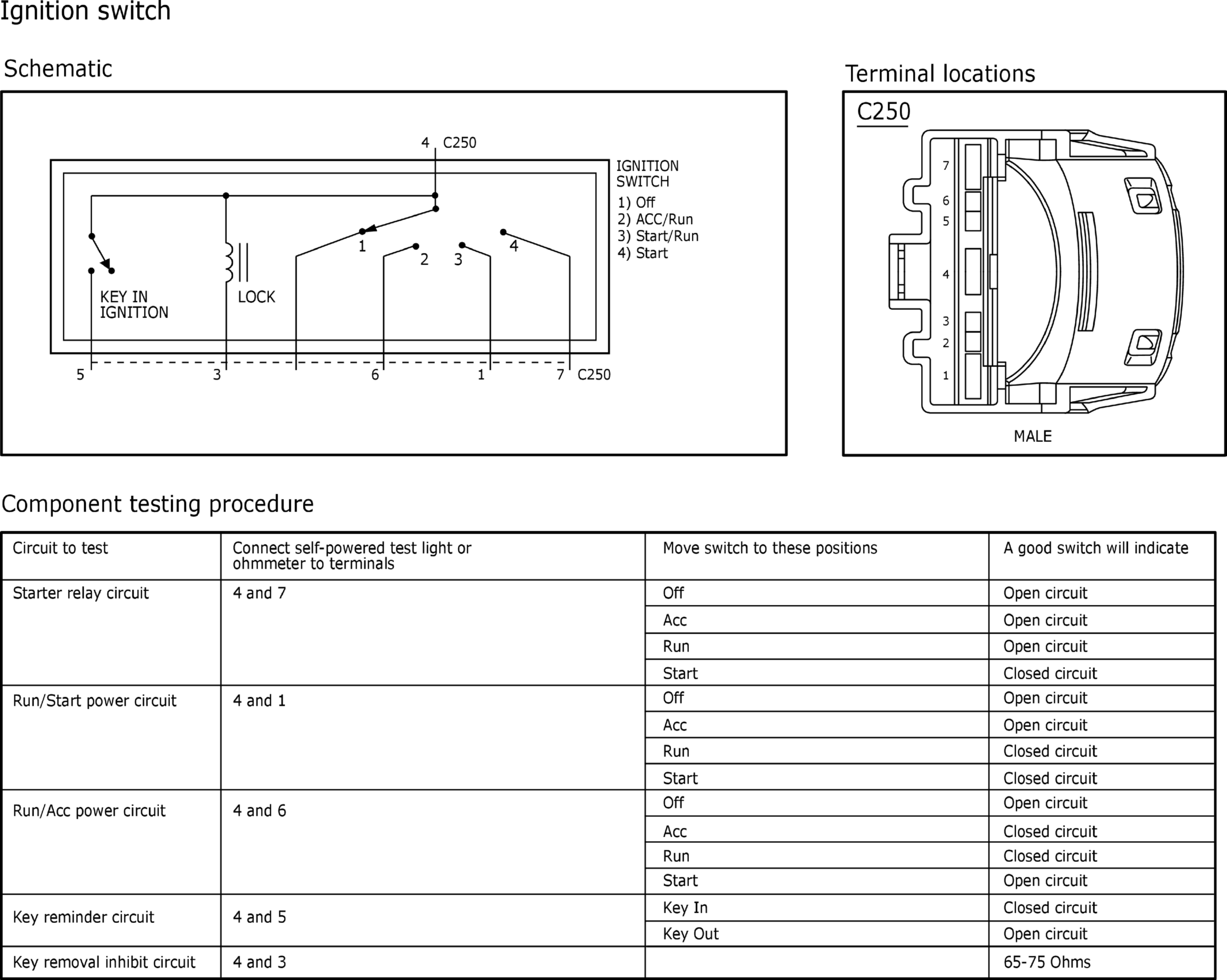

Fig 1: Ignition Switch
GFDW18748Courtesy of FORD MOTOR COMPANY
