Front Disc Brake Shield: Removal
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
Vehicles with monobeam axle

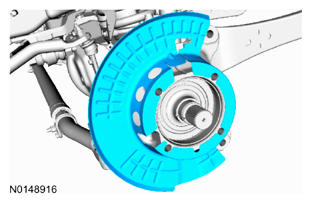

- Remove the wheel bearing and wheel hub. Refer to FRONT SUSPENSION - FOUR WHEEL DRIVE (4WD) .
Vehicles with twin I-beam axle

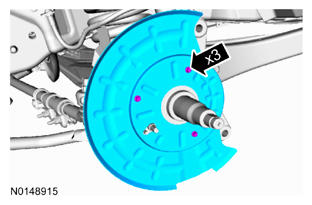

- Remove the brake disc. Refer to BRAKE DISC .
