Information and Entertainment System - Component Location
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

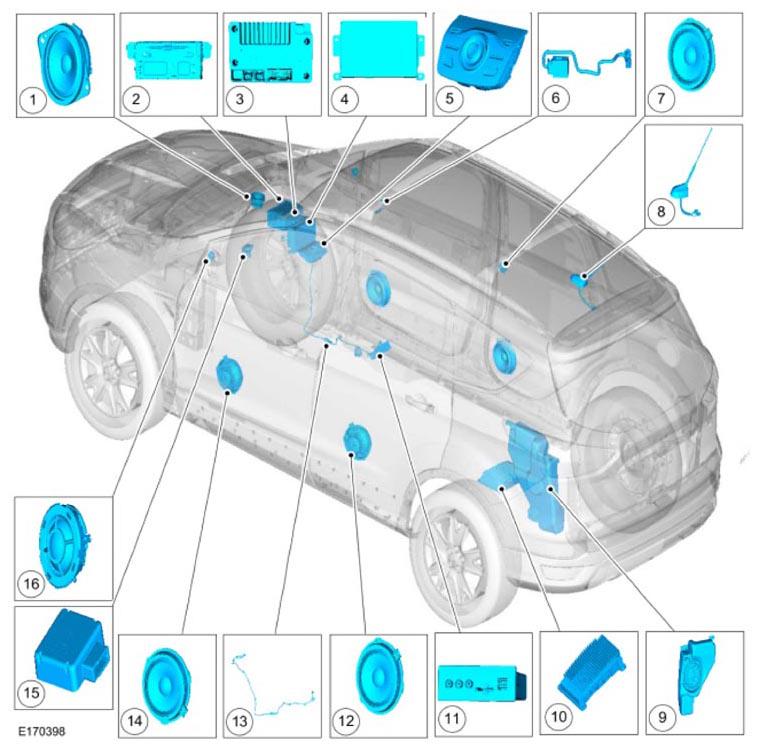

| Item | Description |
|---|---|
| 1 | Instrument panel center speaker |
| 2 | ACM |
| 3 | APIM |
| 4 | 8-inch (203 mm) FDIM |
| 5 | FCIM |
| 6 | SYNC® microphone (located in the overhead console) |
| 7 | Right Rear (RR) door tweeter speaker (Left Rear (LR) also shown) |
| 8 | Combination AM /FM /HD Radio®/satellite radio antenna |
| 9 | Subwoofer enclosure |
| 10 | Audio DSP module |
| 11 | Media hub |
| 12 | Left Rear (LR) door speaker (Right Rear (RR) also shown) |
| 13 | USB cable |
| 14 | Left Front (LF) door (Right Front (RF) also shown) |
| 15 | GPSM |
| 16 | Left Front (LF) A-pillar tweeter speaker (Right Front (RF) also shown) |
| - | AM
/FM
/HD Radio® antenna coaxial cable (not shown) Comments: Part of the 14014 harness |
| - | Satellite radio antenna coaxial cable (not shown) Comments: Part of the 14014 harness |
