Front Brake Pads: Installation

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

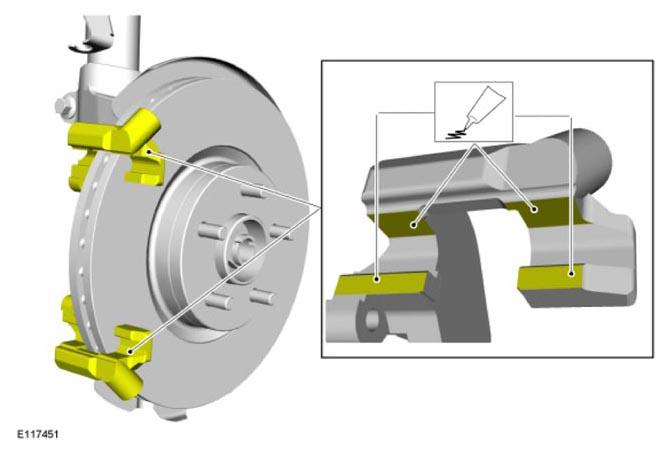

  1. Material:  Silicone Brake Caliper Grease and Dielectric Compound/XG-3-A (ESE-M1C171-A)
    G09371319
  2. To install, reverse the removal procedure.
  3. Depress the brake pedal, check the brake fluid level in the brake fluid reservoir and top up as necessary with brake fluid.

    Refer to: SPECIFICATIONS .
