Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

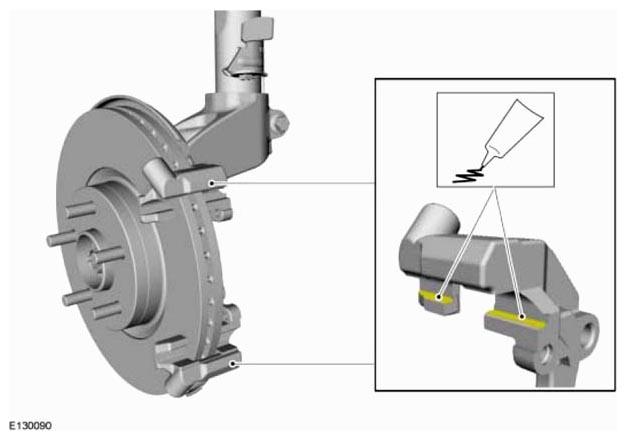

  2. Material:  Silicone Brake Caliper Grease and Dielectric Compound/XG-3-A (ESE-M1C171-A)
    G08056052

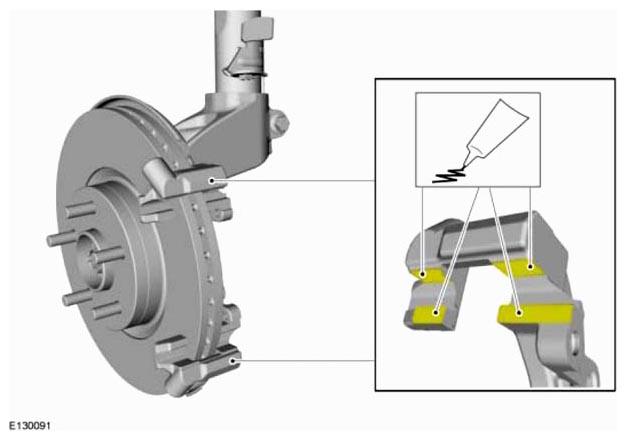

  3. Material:  Silicone Brake Caliper Grease and Dielectric Compound/XG-3-A (ESE-M1C171-A)
    G08056053
  4. Refer to: COMPONENT BLEEDING .
