Front Toe Adjustment: Adjustment
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
- Using alignment equipment and the manufacturer's instructions, measure the front toe.
- Steering wheel in straight ahead position.
-

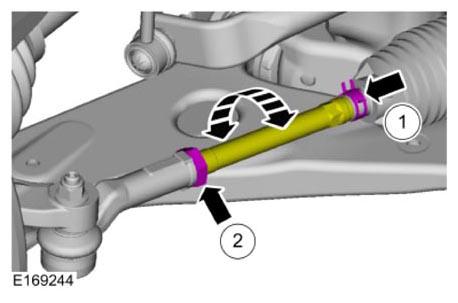

NOTE: Hold the tie-rod end stationary with a wrench while loosening the nut or damage to the boot can occur.NOTE: Do not allow the steering gear bellows to twist when the inner tie rod is rotated.
On both sides.
-
NOTE: Do not disturb the toe settings while tightening the nut(s).
On both sides.
Torque: 66 lb.ft (90 Nm)
- Recheck the toe settings and adjust as necessary.
