Rear Gate Trunk Module (RGTM): Removal

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: LIFTGATE TRIM PANEL ,

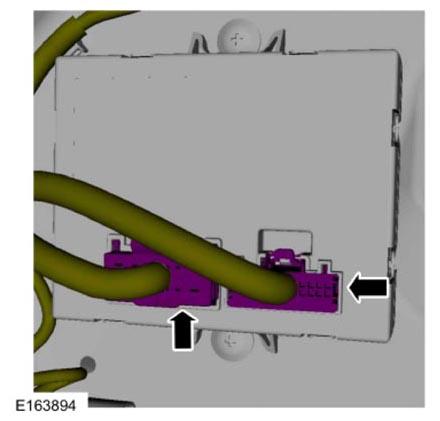

  2. G09376472
  3. Torque  : 62 lb.in (7 Nm)

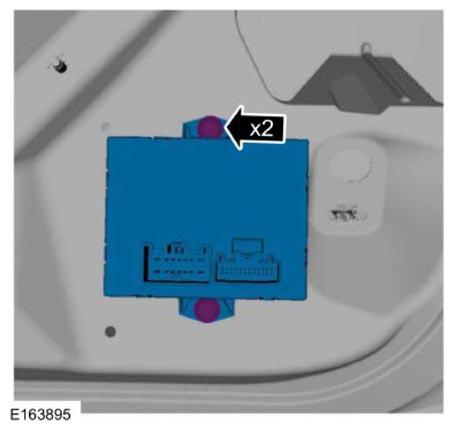

    G09376473
