Rear Door Alignment: Adjustment
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH
shown, RH
similar.

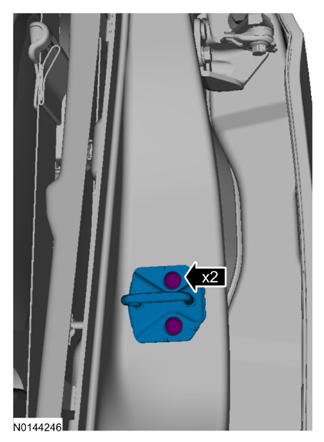

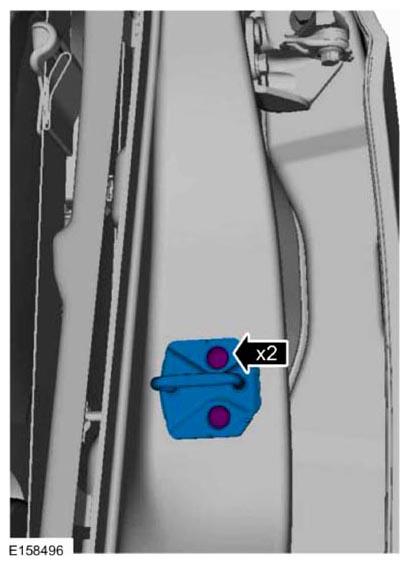

All alignments

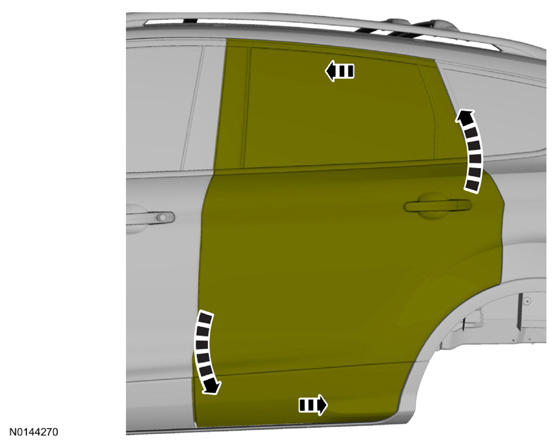

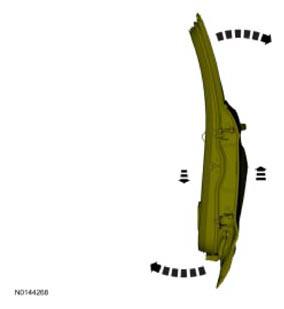

Rear door in and out, up and down alignment

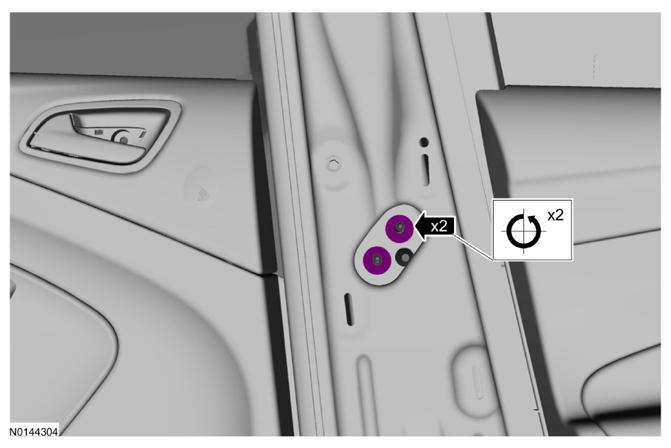

- Torque
: 41 lb.ft (55 Nm)
- Adjust door to specification.
Refer to: BODY AND FRAME .

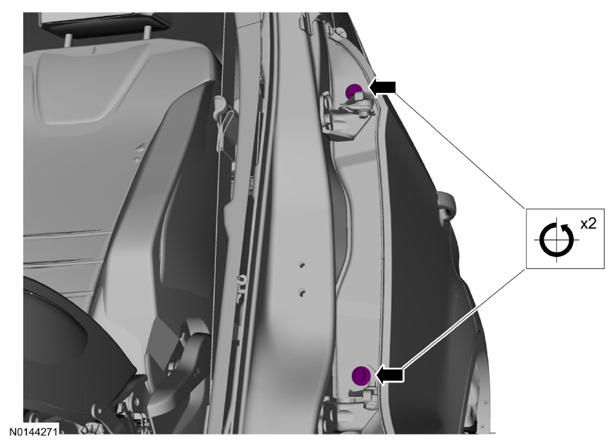

Rear door fore, aft and tilt alignment

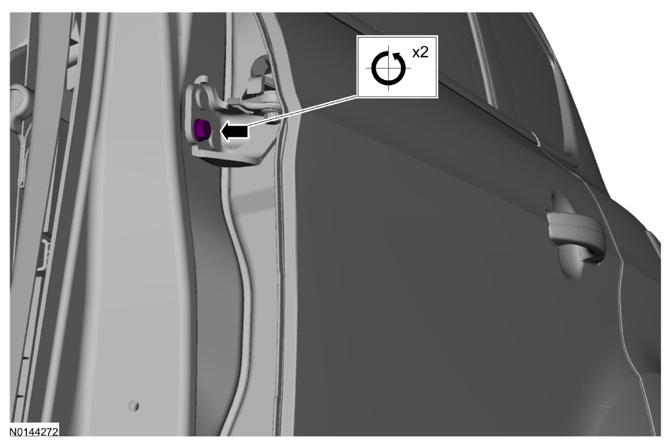

- Torque
: 22 lb.ft (30 Nm)
- Refer to: SAFETY BELT RETRACTOR AND PRETENSIONER .

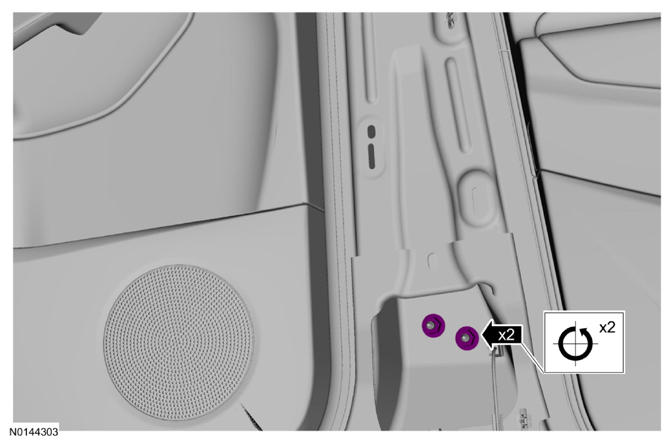

- Torque
: 22 lb.ft (30 Nm)
- Adjust door to specification.
Refer to: BODY AND FRAME .

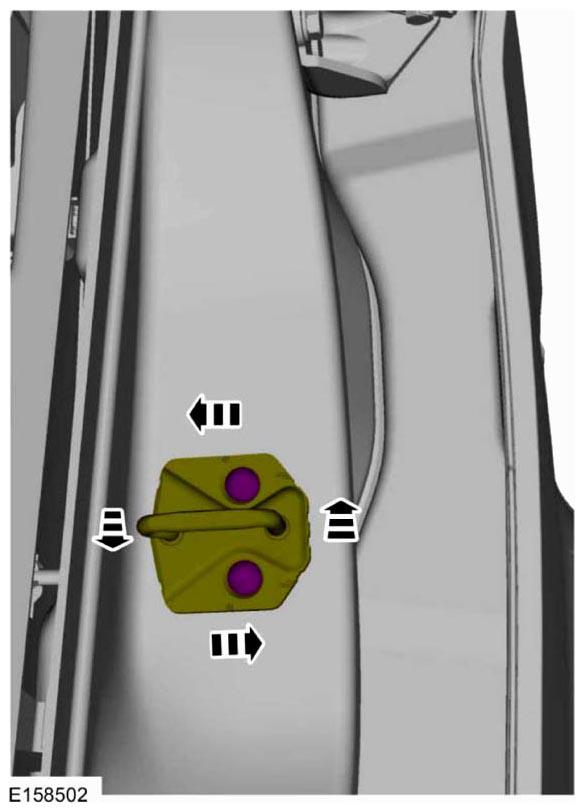

All alignments
- Torque
: 177 lb.in (20 Nm)
- Check body to rear door dimensions.
Refer to: BODY AND FRAME .
- Install the removed components.
