Liftgate Alignment: Adjustment
WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

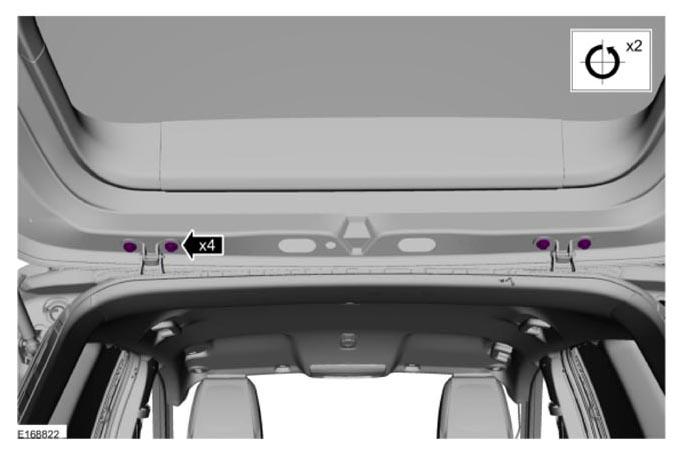

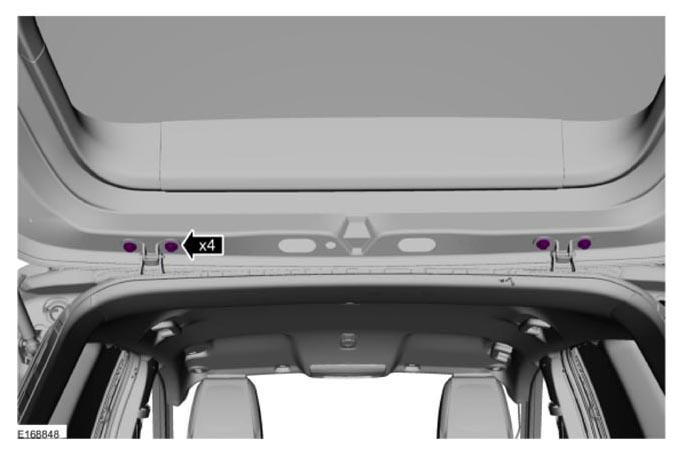

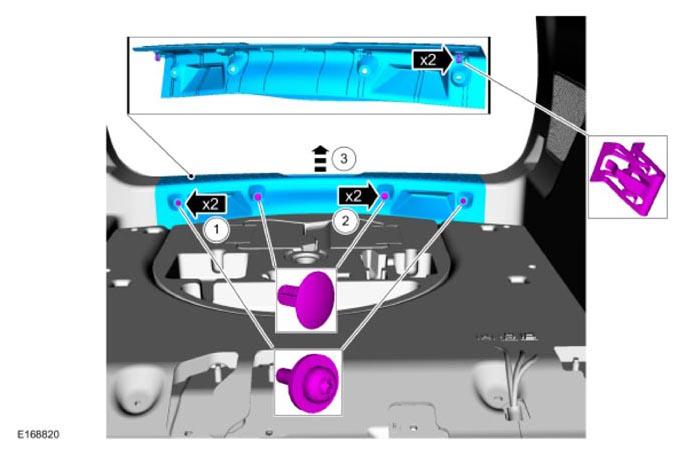

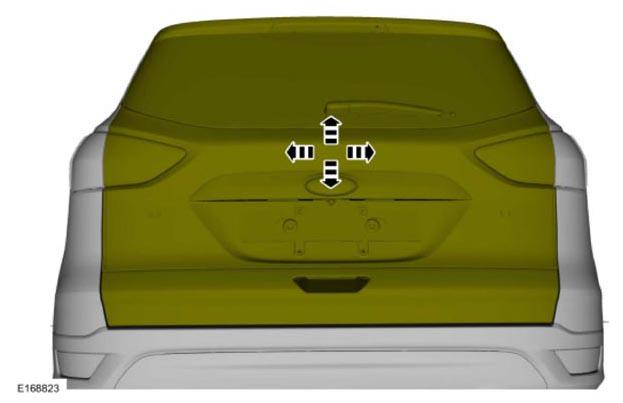

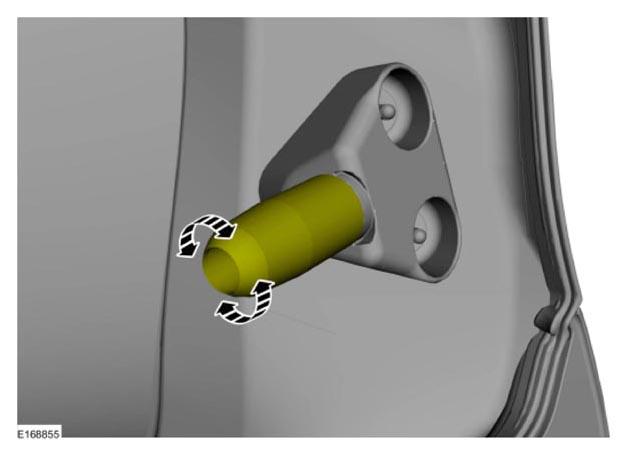

Liftgate left and right, up and down alignment
- Torque
: 22 lb.ft (30 Nm)

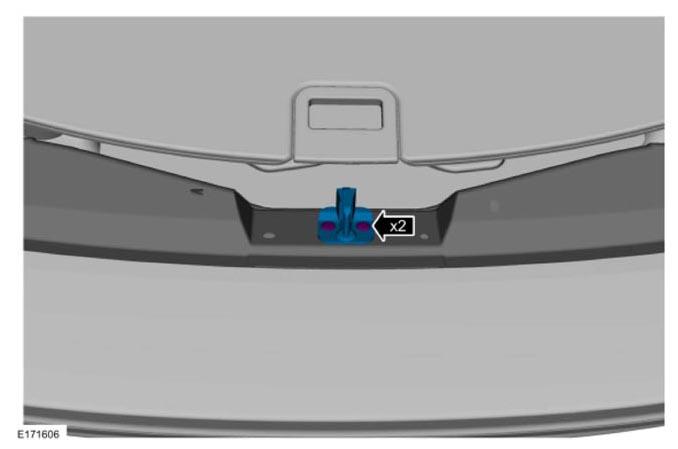

- Refer to: LIFTGATE STRIKER ADJUSTMENT .
- Install the removed components.

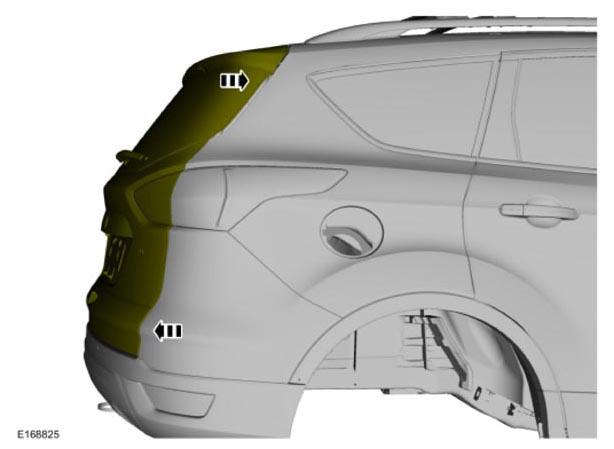

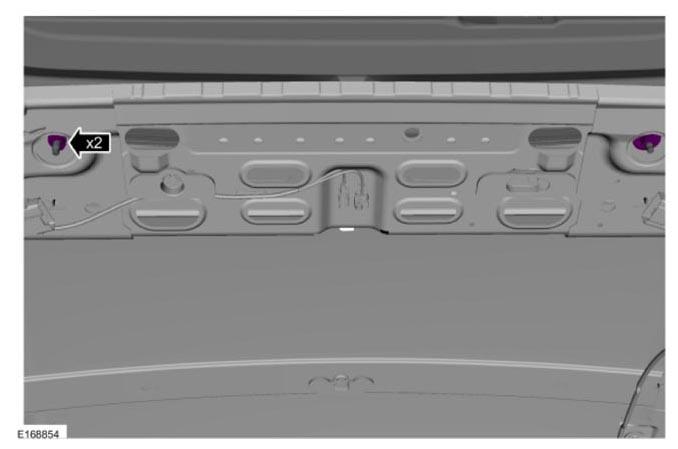

Liftgate in and out alignment
- Refer to: HEADLINER - LOWERING .
- On both sides.

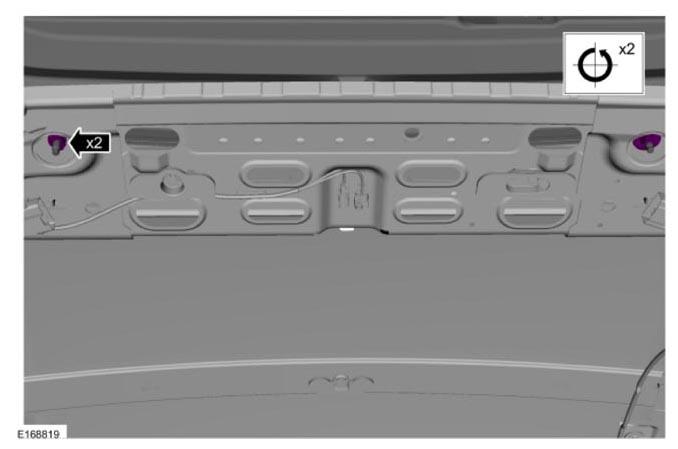

- Torque
: 41 lb.ft (55 Nm)
- Refer to: LIFTGATE STRIKER ADJUSTMENT .
- Install the removed components.
Power Liftgate
- Refer to: POWER LIFTGATE INITIALIZATION .
