Front Seat Control Switch: Removal

WARNING: This page is about a different car, the 2014 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
  1. WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Ignition must remain OFF until repair is complete. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.

    Turn the ignition OFF and wait at least one minute.

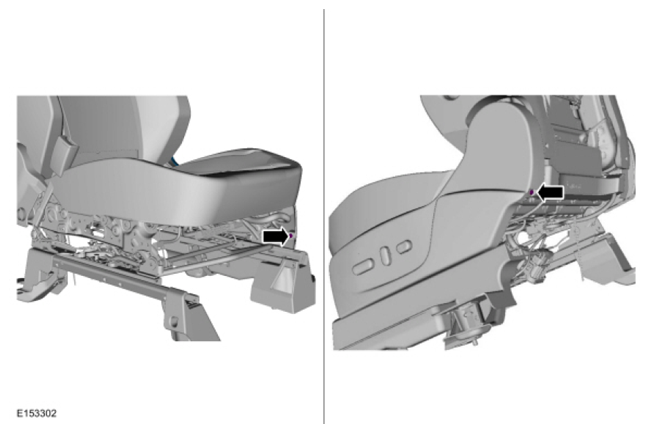

  2. G08409621

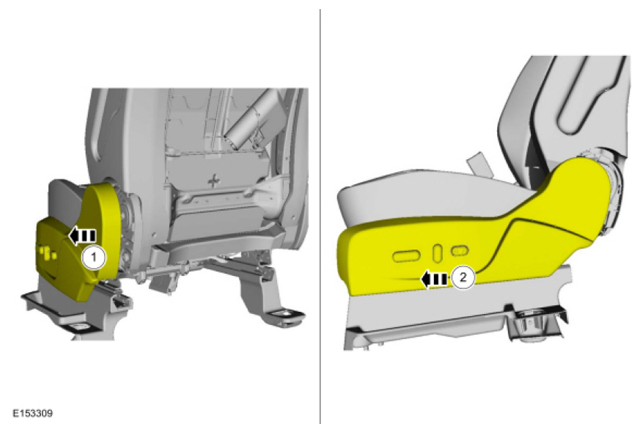

  3. G08409622

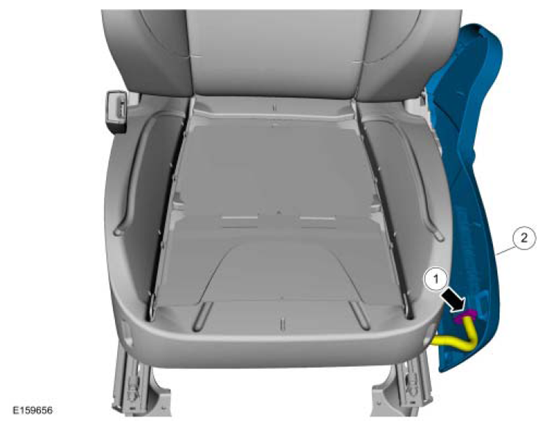

  4. G08409623

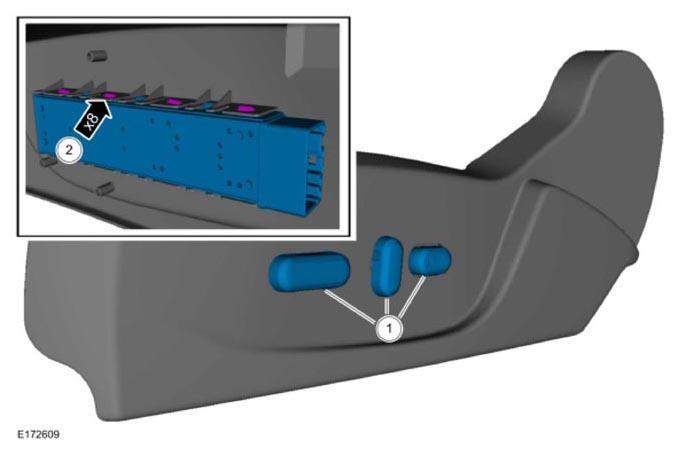

  5. G09276990
