Window control switch - Without door modules: Schematic

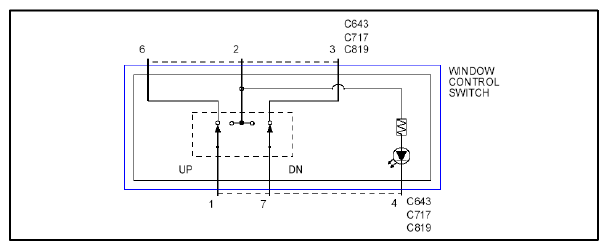

Fig 1: Window Control Switch Schematic - Without Door Modules

G08741826

Courtesy of FORD MOTOR CO.
