OEM Ground Distribution: Grounds: G401

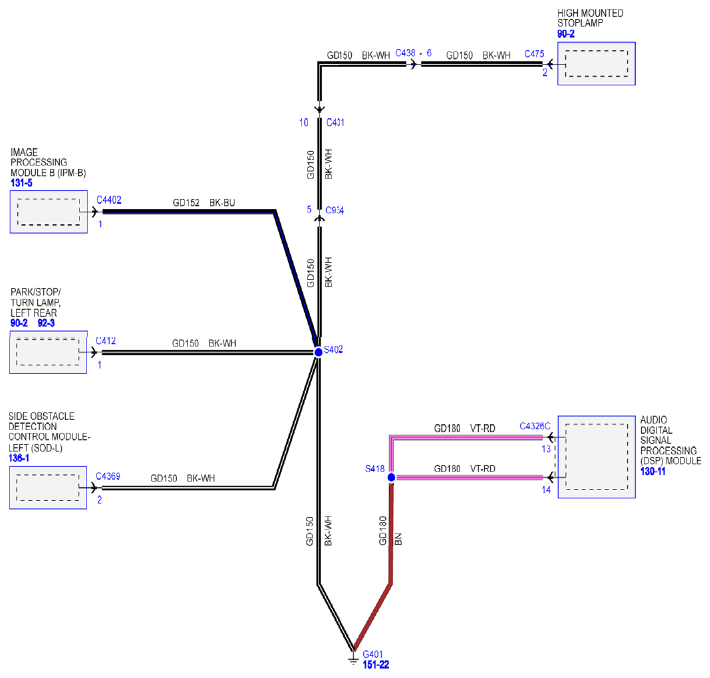

Fig 1: Ground Circuit Diagram - G401

G08741547

Courtesy of FORD MOTOR CO.
