OEM Ground Distribution: Grounds: G206

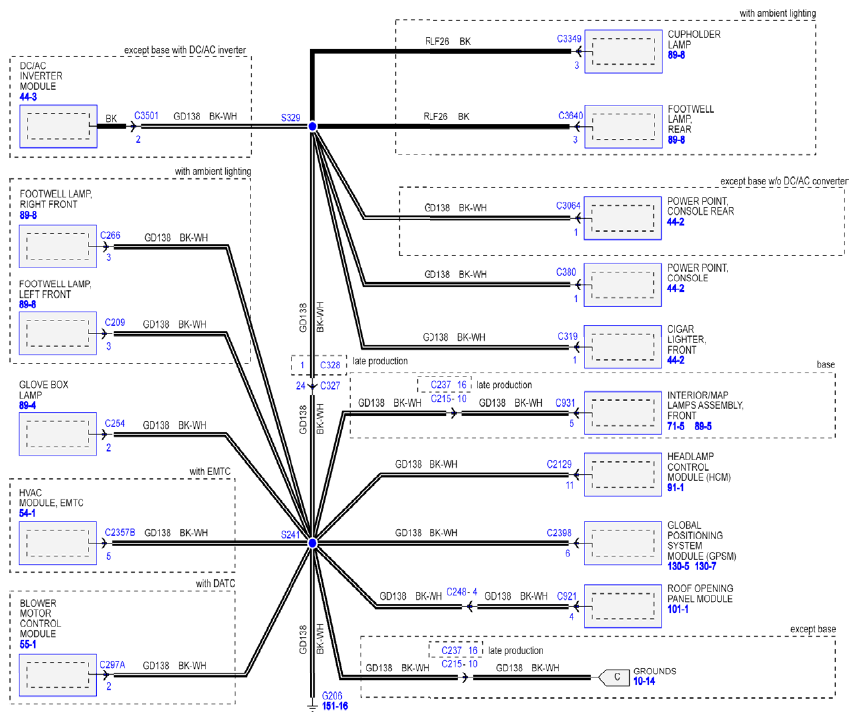

Fig 1: Ground Circuit Diagram - G206 (1 Of 2)

G08741542

Courtesy of FORD MOTOR CO.

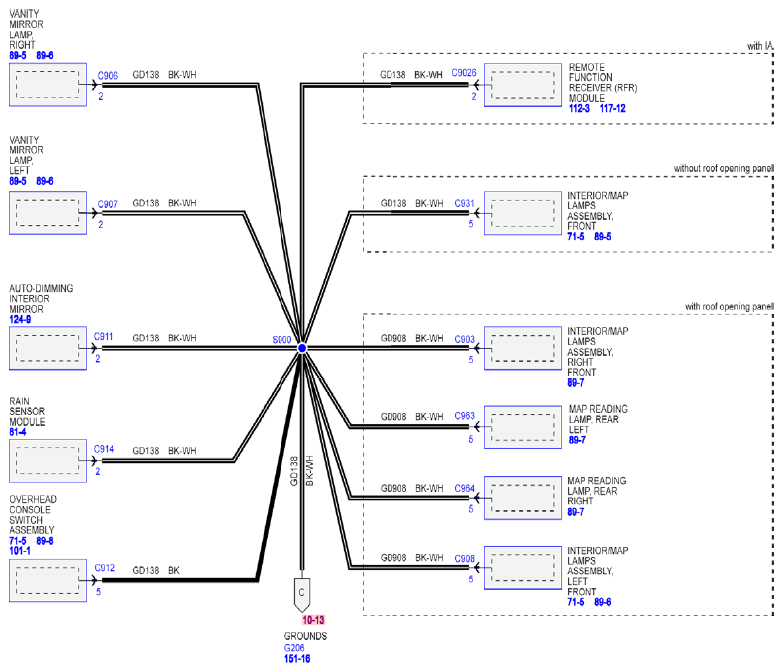

Fig 2: Ground Circuit Diagram - G206 (2 Of 2)

G08741543

Courtesy of FORD MOTOR CO.
