OEM Ground Distribution: Grounds: G107

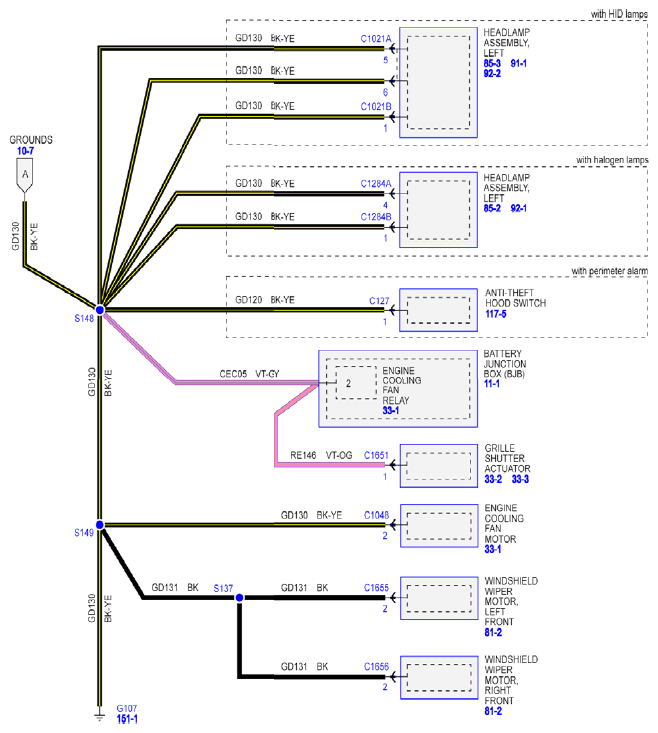

Fig 1: Ground Circuit Diagram - G107 (1 Of 2)

G08741535

Courtesy of FORD MOTOR CO.

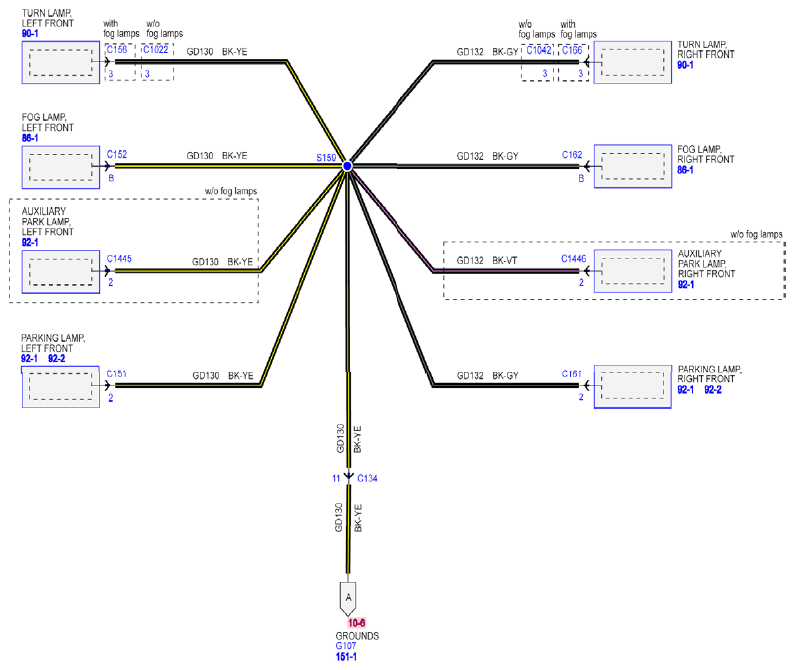

Fig 2: Ground Circuit Diagram - G107 (2 Of 2)

G08741536

Courtesy of FORD MOTOR CO.
