OEM Ground Distribution: Grounds: G103

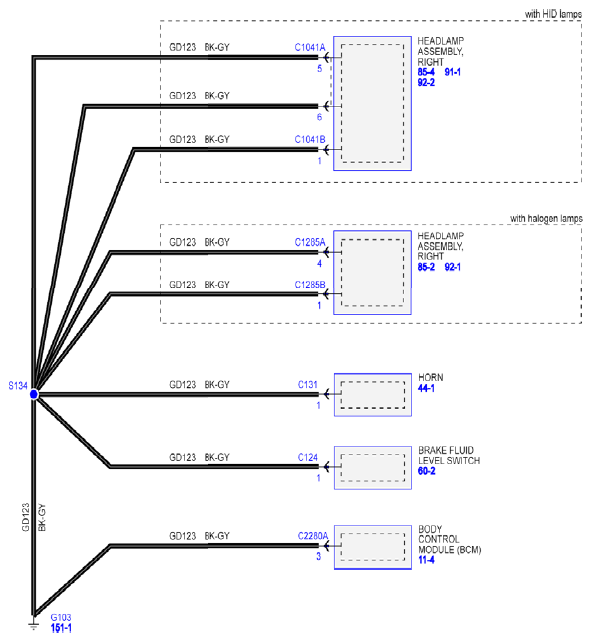

Fig 1: Ground Circuit Diagram - G103

G08741534

Courtesy of FORD MOTOR CO.
