Home >> Ford >> 2013 >> Escape S >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transaxle External Control - 6F35 >> Removal And Installation >> Selector Lever >> Removal And Installation

Removal And Installation

  1. Remove the floor console. Refer to INSTRUMENT PANEL AND CONSOLE .
  2. To install, tighten to 9 Nm (80 lb-in).

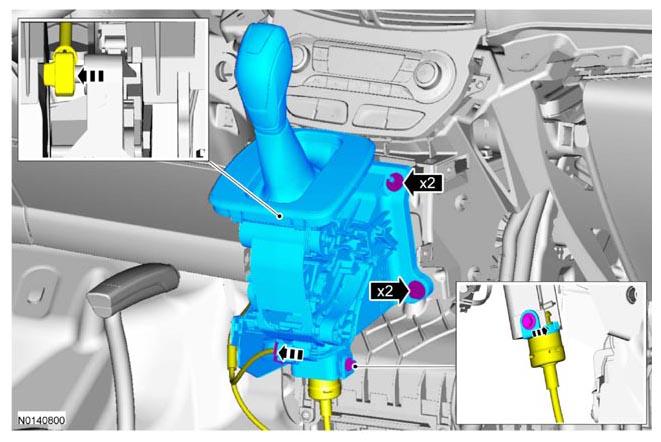

    G08615152
  3. To install, reverse the removal procedure.
  4. Adjust the selector lever cable when a new selector lever is installed. Refer to SELECTOR LEVER CABLE ADJUSTMENT .
