Front Impact Severity Sensor: Installation

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Make sure the front impact severity sensor mating surfaces are clean and free of foreign material.

    Position the front impact severity sensor, install the front impact severity sensor bolt and connect the front impact severity sensor electrical connector.

    • Tighten to 12 Nm (106 lb-in).
  2. For LH side, install the ACL  . Refer to REFER to INTAKE AIR SYSTEM COMPONENTS - EXPLODED VIEW .

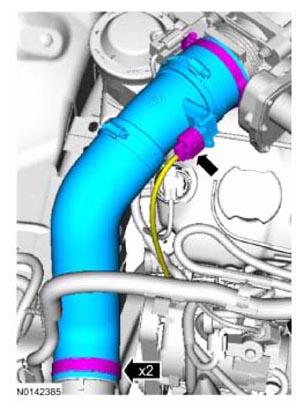

  3. NOTE: When installing the LH CAC  tube, align the index marks made during removal.

    For the RH side and vehicles equipped with a 3.5L GTDI  engine.

    G08041706
  4. Repower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITH INTELLIGENT ACCESS (IA)  or SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING - WITHOUT INTELLIGENT ACCESS (IA) .
