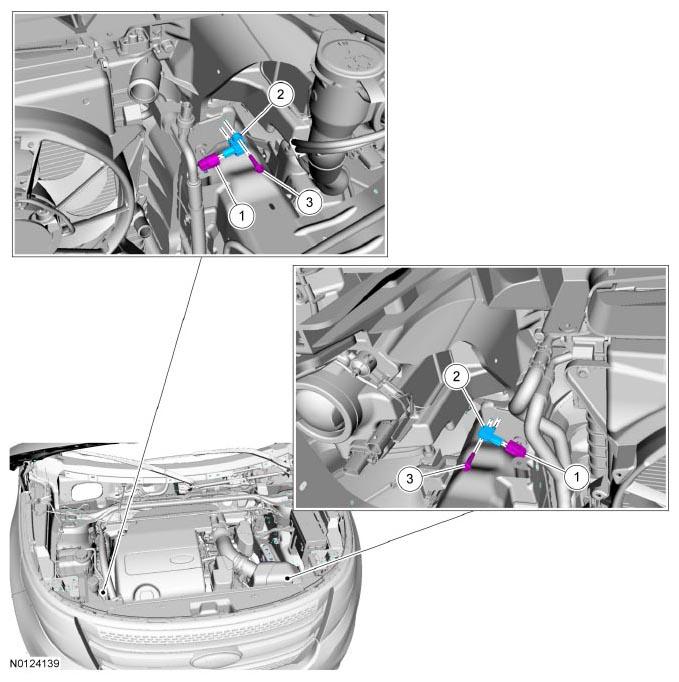

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
Front impact severity sensor electrical connector (part of 14290) |
- |
- |
- |
| 2 |
14B345 |
Front impact severity sensor |
- |
- |
- |
| 3 |
W505256 |
Front impact severity sensor bolt |
- |
- |
12 Nm (106 lb-in) |
