Front Brake Caliper: Installation

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

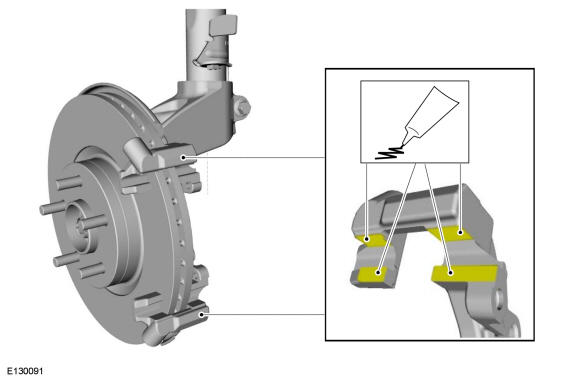

1.

Apply the substance from the specified tube.
Material

: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

Courtesy of FORD MOTOR COMPANY

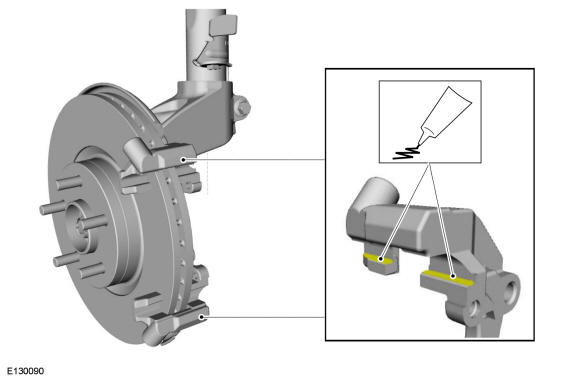

2.

Apply the substance from the specified tube.
Material

: Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

Courtesy of FORD MOTOR COMPANY

3.

NOTE: Make sure that the brake hose is not twisted and correctly aligned when tightening the brake flexible hose fitting or damage to the brake flexible hose may occur.

To install, reverse the removal procedure.

Courtesy of FORD MOTOR COMPANY

4.

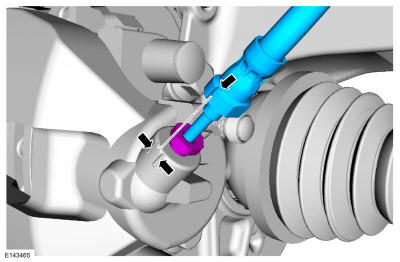

Bleed the caliper. Refer to: COMPONENT BLEEDING .
