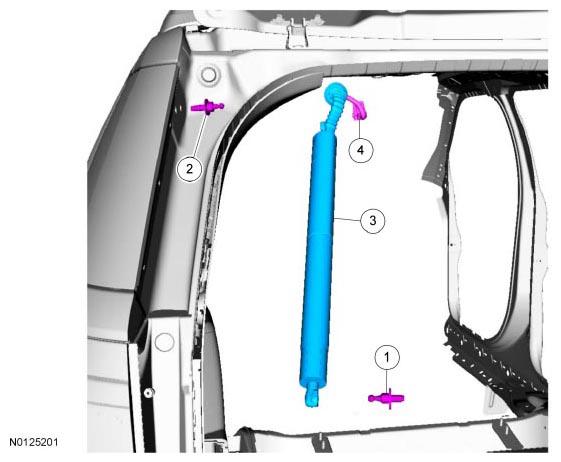

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Torque |
Material Name |
Notes |
| 1 |
W710571 |
Liftgate-to-body strut stud |
55 Nm (41 lb-ft) |
- |
- |
| 2 |
W715125 |
Body-to-liftgate strut stud |
40 Nm (30 lb-ft) |
- |
- |
| 3 |
14B351 |
Liftgate strut and motor |
- |
- |
- |
| 4 |
- |
Electrical connector (part of 14B351) |
- |
- |
- |
