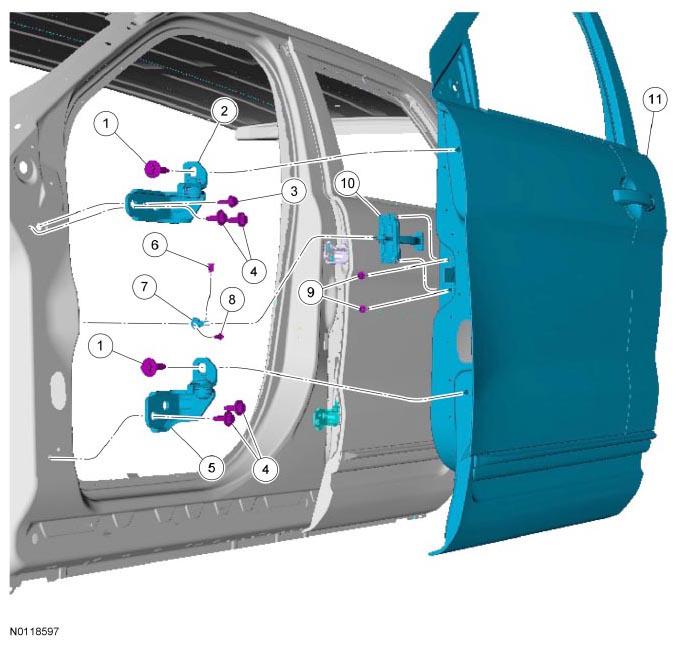

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Service Part Number | Description | Torque | Material Name | Notes |
|---|---|---|---|---|---|
| 1 | W705201 | Door hinge-to-door bolt | 55 Nm (41 lb-ft) | - | - |
| 2 | 7822800 RH/7822801 LH | Upper door hinge | - | - | - |
| 3 | W714632 | Door hinge locator bolt | 10 Nm (89 lb-in) | - | - |
| 4 | W710603 | Door hinge-to-pillar bolt | 30 Nm (22 lb-ft) | - | - |
| 5 | 7822810 RH/7822811 LH | Lower door hinge | - | - | - |
| 6 | - | Door check pivot pin (part of 7823552) | - | - | - |
| 7 | - | Door check-to-A-pillar bracket (part of 7823552) | - | - | - |
| 8 | W713778 | Door check-to-pillar bolt | 25 Nm (18 lb-ft) (Non-police models) 20 Nm (15 lb-ft) (Police models) |
- | - |
| 9 | W520111 | Door check-to-door nut | 12 Nm (106 lb-in) | - | - |
| 10 | 7823552 | Door check assembly | - | - | - |
| 11 | 780124 RH/780125 LH | Door assembly | - | - | - |
