Rain Sensor Bracket: Installation

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The rain sensor bracket primer and adhesive are not included in service kit (part number 19G382) and will have to be ordered separately. The rain sensor bracket primer and adhesive part numbers and ordering instructions are available in the parts ordering system.

NOTE: Use only a plastic scraper or damage to the ceramic paint on the windshield can occur.

NOTE: Use care when cleaning off residual glue from windshield or damage to the windshield camera defroster can occur.

General Equipment: Plastic Scraper.

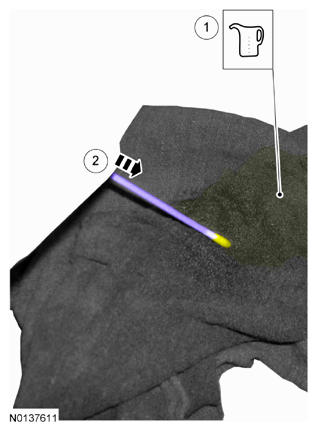

Clean the specified component with the specified material.
- General Equipment: Isopropyl Alcohol.
- Apply the fluid.
- General Equipment: Cotton Swab.

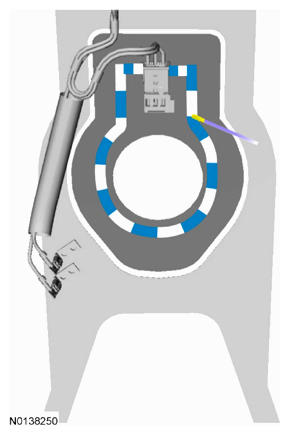

NOTE: Glass must be clean and dry.

NOTE: Take care not to apply primer to the clear sensor window.

General Equipment: Cotton Swab.

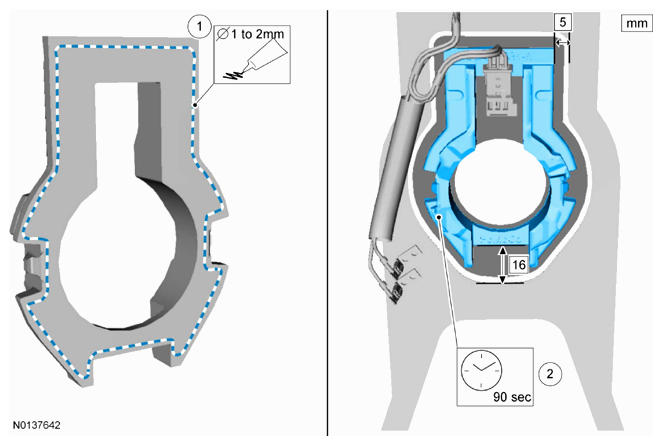

- Apply a continuous bead of the specified diameter from the specified tube.
- Working time: 90 s.

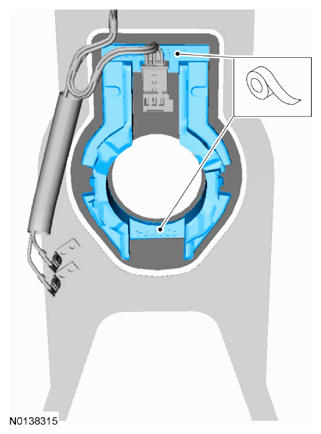

NOTE: Do not apply masking tape onto the rain sensor view window area.

Apply tape to specified component or area.

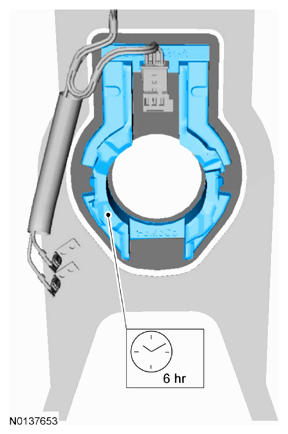

Wait time: 6 h.
Install the rain sensor. Refer to RAIN SENSOR .
