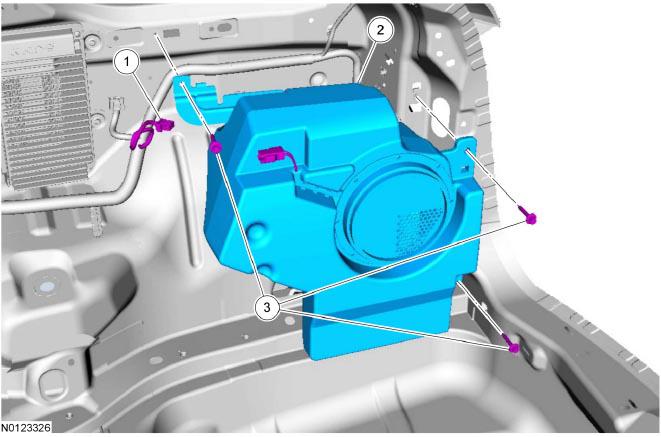

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Service Part Number |
Description |
Tool Number |
Material Name |
Notes |
| 1 |
- |
Subwoofer speaker electrical connector (part of 14A005) |
- |
- |
- |
| 2 |
18808 |
Subwoofer speaker |
- |
- |
- |
| 3 |
W505425 |
Subwoofer speaker bolts (3 required) |
- |
- |
10 Nm (89 lb-in) |
