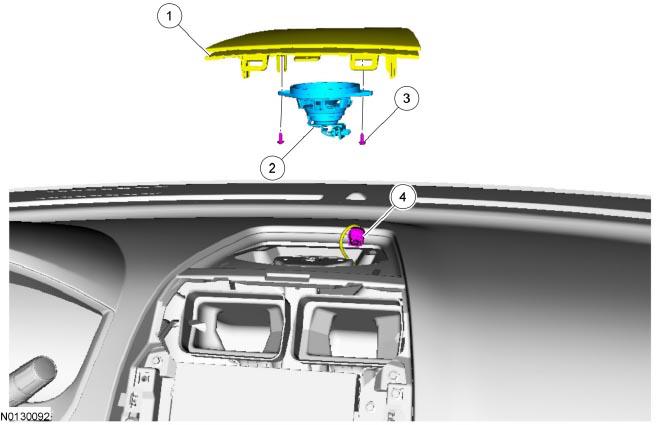

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Part Number |
Description |
| 1 |
18978 |
Instrument panel speaker cover |
| 2 |
18808 |
Instrument panel speaker |
| 3 |
W705314 |
Instrument panel speaker screws (2 required) |
| 4 |
- |
Instrument panel speaker electrical connector (part of 14401) |
