Blower Motor Speed Control: Removal

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

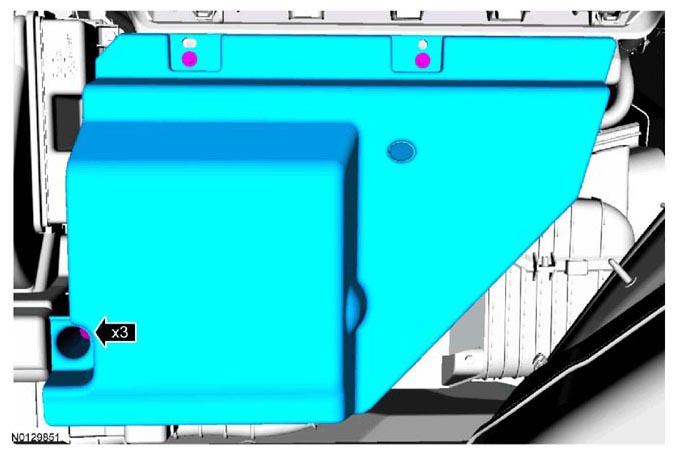

  1. Remove the 3 RH lower instrument panel insulator retainers and the RH lower instrument panel insulator.
    G07427419
  2. Disconnect the blower motor speed control electrical connector.
  3. Remove the 2 blower motor speed control screws.
  4. Remove the blower motor speed control.
