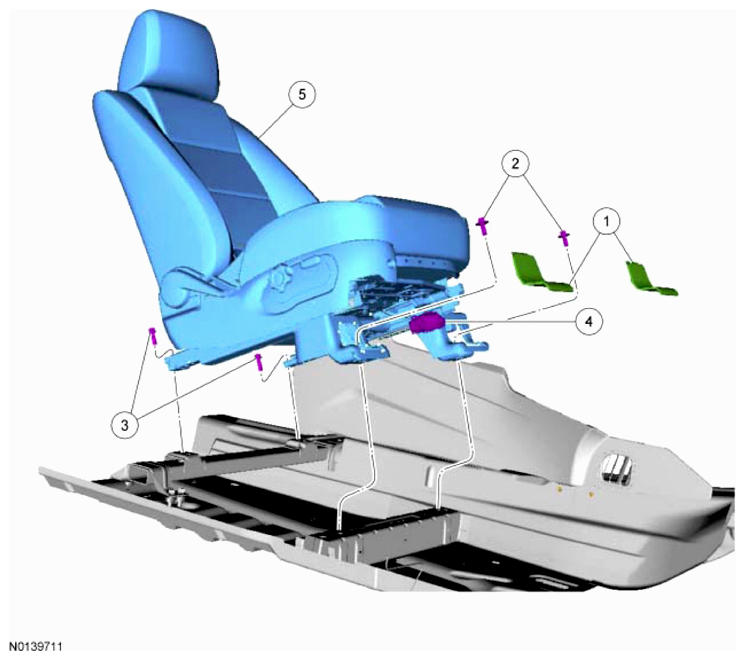

Exploded View
WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Passenger side shown in illustration, driver side similar.
| Item |
Part Number |
Description |
| 1 |
78629 |
Front cover (2 required) |
| 2 |
W709428 |
Front mounting bolts |
| 3 |
W714018 |
Rear mounting bolts |
| 4 |
- |
Electrical connector |
| 5 |
- |
Passenger seat assembly |
