Generator - 2.0L GTDI: Installation

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This step is only necessary when installing a new component.

If removed, finger-tight
Install the generator.
1. Install the generator upper bolt. Torque: 62 lb.in (7 Nm)
2. Install the generator bracket stud. Torque: 62 lb.in (7 Nm)
Install the generator bracket upper bolt and bracket nut. Torque: 18 lb.ft (25 Nm)
1. Tighten the generator upper bolt. Torque: 18 lb.ft (25 Nm)
2. If removed, tighten the generator bracket bolt. Torque: 18 lb.ft (25 Nm)
3. If removed, tighten the generator bracket bolt. Torque: 18 lb.ft (25 Nm)

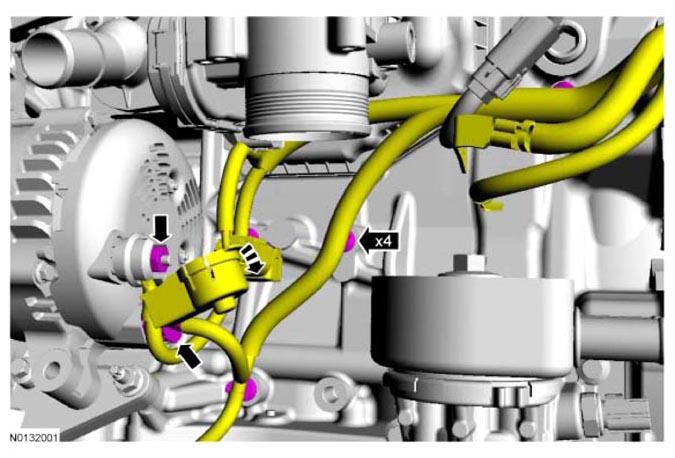

Install the wire terminal and nut on the generator.
- Tighten to 17 Nm (150 lb-in) and install the cap.
- Connect the wire harness electrical connector.
- Attach the 4 wiring harness retainers to the engine.
Install the A/C compressor, the 2 bolts and the stud.
- Tighten the bolts to 25 Nm (18 lb-ft) and the stud to 9 Nm (80 lb-in).
- Install the nut and tighten to 25 Nm (18 lb-ft).

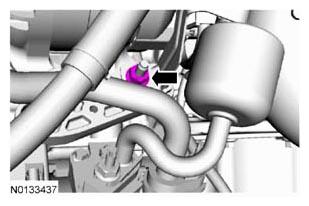

Install the A/C tube bracket bolt.
- Tighten to 25 Nm (18 lb-ft).
Connect the 2 A/C compressor electrical connectors.
- Attach the wiring harness retainer to the A/C tube stud bolt.
Install the Accessory drive belt. REFER to ACCESSORY DRIVE .
Install the A/C drive belt. REFER to ACCESSORY DRIVE .
