Audio Input Jack: Removal

WARNING: This page is about a different car, the 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure in this service information, refer to SAFETY WARNINGS . Failure to follow this instruction may result in serious personal injury.
  1. All vehicles except police. Remove the LH  and RH  finish panel. REFER to INSTRUMENT PANEL - EXPLODED VIEW
  2. Pull the LH  and RH  floor console side trim panels outward to release the top 3 retaining clips. REFER to CONSOLE - FRONT, FLOOR
  3. Position the armrest latch trim panel aside.
    1. pull upward to release the 2 clips.
      G07430655

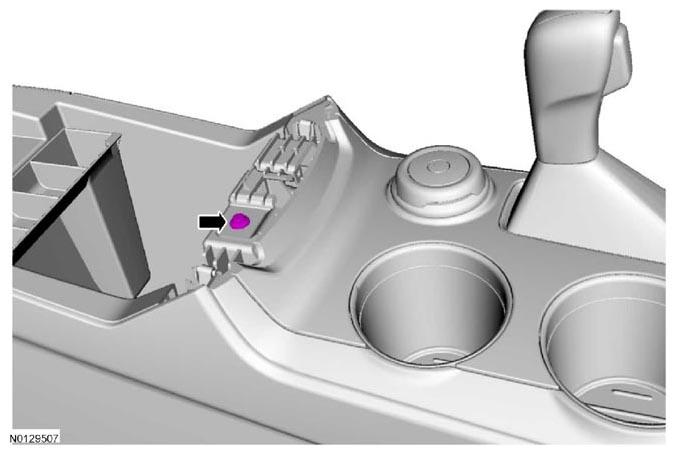

  4. Remove the screw for the console upper finish panel.
    G07431179
  5. Position the floor console selector lever to the full rearward position.
  6. Position aside the console upper finish panel from the floor console.
    1. Pull upward to release the clips starting at the rear and working forward.
      G07430657
  7. Open the floor console finish panel bin door.

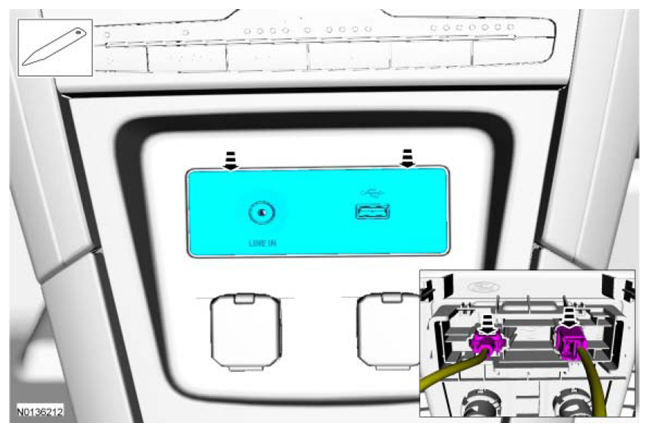

  8. Police vehicles only. Remove the audio input jack bezel.
    1. Disconnect the audio input jack electrical connectors.
    2. Remove the audio input jack from the bezel.
      G08413036
  9. All vehicles except police. Remove the audio input jack bezel.
    1. Disconnect the audio input jack electrical connector.
    2. Remove the audio input jack from the bezel.
