Section 222 (OEM Ground Distribution): Grounds: G103

WARNING: This page is about a different car, the 2014 Ford Police Interceptor Utility and 2014 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

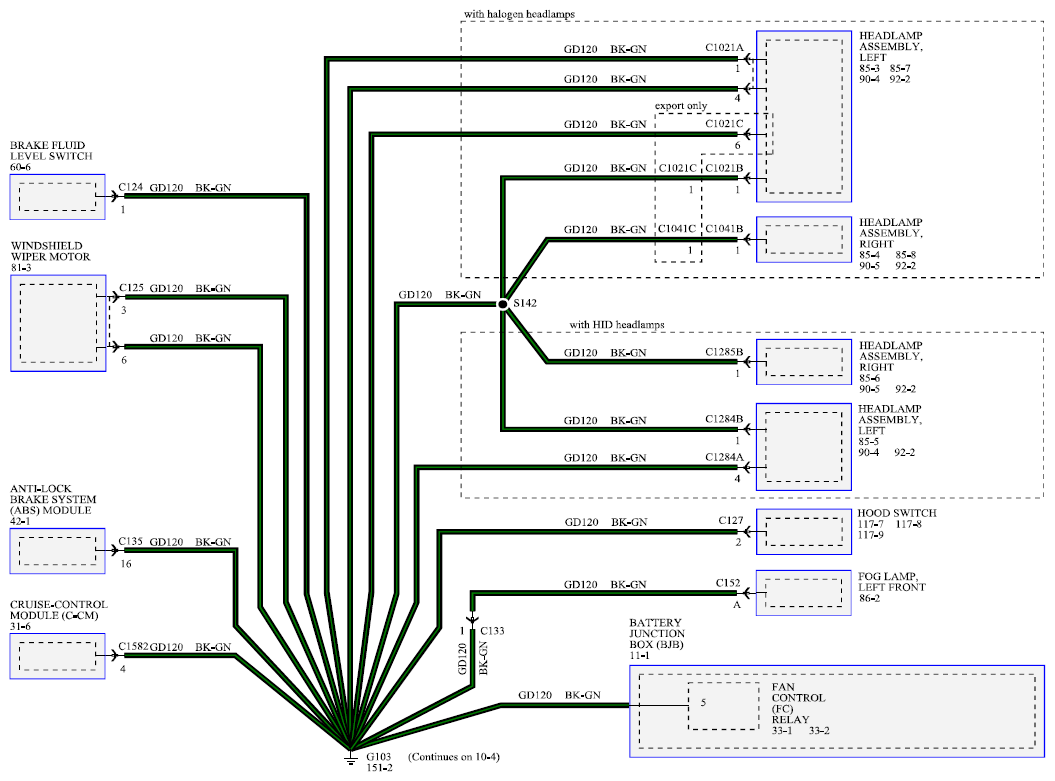

Fig 1: Grounds System - Wiring Diagram - G103
G09230124Courtesy of FORD MOTOR CO.
